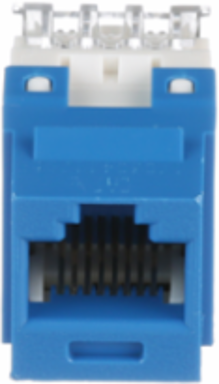

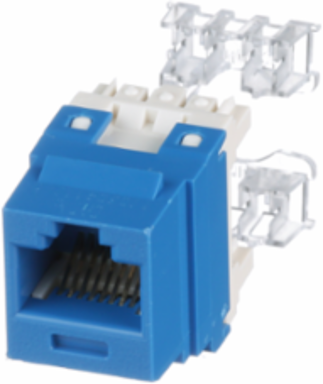

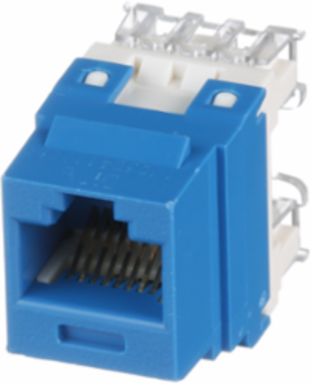

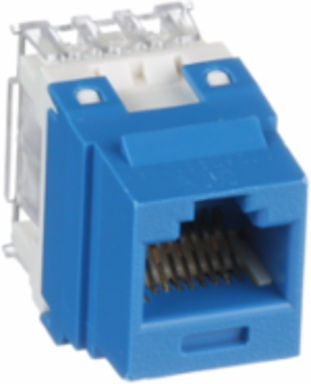

Panduit NK688MBU UTP RJ45 Cat 6 Punchdown Keystone Jack Module, BU
- MPN: NK688MBU
- UPC: 074983574698
- PPN: PAN-NK688MBU
- UNSPSC: 43223301
CAD
$15.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is blue.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | EDI-ENT |
| Maximum Operating Temperature (°C) | 75 |
| Overall Depth (In.) | 1.16 |
| Minimum Storage Temperature (°F) | -40 |
| Overall Depth (mm) | 29.5 |
| Module Type | Keystone |
| Connector Type | Jack Module - Standard |
| Note | Punchdown style termination |
| Minimum Operating Temperature (°F) | 14 |
| Termination Style | Punchdown |
| Sub Brand | NetKey® |
| Overall Length (In.) | 1.16 |
| Product Type | Jack Module |
| Body Material | Polycarbonate |
| Overall Height (mm) | 22.9 |
| Any Reason Not to Sell | N |
|---|---|
| Overall Length (mm) | 29.5 |
| Minimum Operating Temperature (°C) | -10 |
| Color | Blue |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Overall Height (In.) | 0.9 |
| Contact Material | Plated Phosphor Bronze |
| Wiring Scheme | T568A/T568B |
| Overall Width (mm) | 16.5 |
| Overall Width (In.) | 0.65 |
| Minimum Storage Temperature (°C) | -40 |
| Shield Type | Unshielded (UTP) |
| Maximum Storage Temperature (°F) | 167 |
| Performance Level | Category 6 |
Packaging Details
| UPC | 07498357469 |
|---|---|
| Standard Package Volume Ft3 | 0.0032 |
| Std Package Height In | 1 |
| Std Package Length In | 3.6 |
| Std Package Width In | 3.45 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1 |
| Standard Carton Volume Ft3 | 0.1604 |
| Std Carton Height In | 3.4 |
| Std Carton Length In | 10.75 |
| Std Carton Width In | 7.2 |
| Std Ctn Qty | 50 |
| EAN | 00074983574698 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 16,800 |
| Pallet Weight | 403.2000 |
| GTIN Package | 00074983574698 |
|---|---|
| Standard Package Weight Pounds | 0.0240 |
| Std Package Height MM | 25.4 |
| Std Package Length MM | 91.44 |
| Std Package Width MM | 87.63 |
| UOM EA PK | EA |
| GTIN Carton | 50074983574693 |
| Standard Carton Weight Pounds | 1.2000 |
| Std Carton Height MM | 86.36 |
| Std Carton Length MM | 273.05 |
| Std Carton Width MM | 182.88 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 50.0000 |
| Pallet Volume | 53.886389 |
| RoHS Compliant | Compliant |
