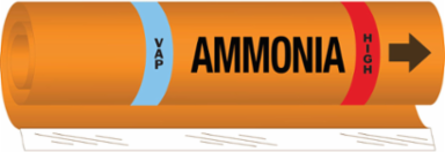

Brady 145814 VAP AMMONIA HIGH Pipe Marker, 26" H x 12" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.
- MPN: 145814
- UPC: 754473546021
- PPN: BRD-145814
- UNSPSC: 55121737
CAD
$23.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style II wrap-around pipe markers fit pipes with outside diameter of 2-1/2 in. to 7-7/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Cards or Sheets per Pack
- 1
- Combined IIAR Legend
- AMMONIA VAP HIGH
- Enables Industry Compliance
- IIAR Standard - Bulletin 114
- IIAR Phase
- VAP
- Language
- English
- Pipe Marker Style
- II
- Printer and Label Applications
- Pipe Marker
- Brady Material Number
- B-689
- Label Properties
- Harsh Environment Labels
- Material
- Coiled Plastic
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Character Height (mm/cm/m)
- 31.8 mm
- Dimensions (Metric)
- 66.04 cm H
- Height (in/ft/yd)
- 26 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 7.875 in
- Maximum Service Temperature °C
- 120 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 2.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 2.5" Dia. Thru 7.875in Dia.
- Sign Size-General
- 26 in x 12 in
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 12 in
Brand NameBrady®
ColorBlack/Blue/Red on Orange
Compatible Surface TypesCurved; Rough
IIAR LegendAMMONIA
IIAR Pressure LevelHIGH
Pipe Marker Mounting StyleWrap Around
Primary Noun, Basic FunctionPipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut on Cards
Indoor or Outdoor UseOutdoor Use
LaminatedPolyester Overlaminate
Material PropertiesSelf-laminating
SAP B-NumberB-689
Character Height (in/ft/yd)1.25 in
Dimensions26 in H x 12 in W
Dimensions 226 in H x 12 in W
Height (mm/cm/m)66.04 cm
Maximum Outside Pipe Diameter (mm/cm/m)200.03 mm
Maximum Service Temperature °F248 °F
Minimum Outside Pipe Diameter (mm/cm/m)63.5 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)26 in H x 12 in W
SizeII
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)30.48 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
