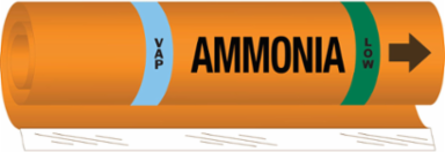

Brady 145771 VAP AMMONIA LOW Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.

MPN: 145771
UPC: 754473545635
PPN: BRD-145771
UNSPSC: 55121737

$17.79

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.

Features

IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.

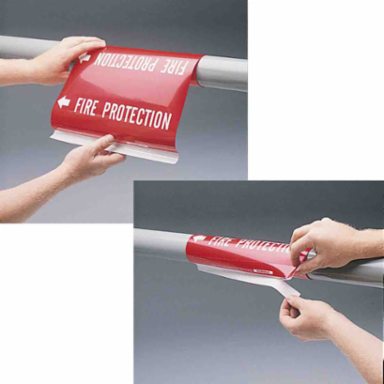

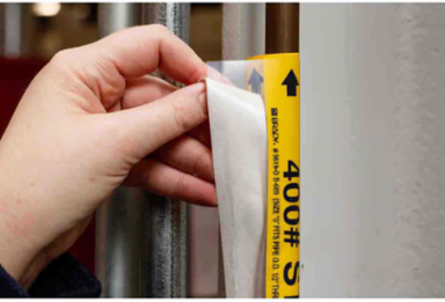

B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
Pipe marker includes directional arrows

Documentation & Downloads

Specifications

Key Specifications

Applications	Pipe and Valve Marking
Cards or Sheets per Pack	1
Combined IIAR Legend	AMMONIA VAP LOW
Enables Industry Compliance	IIAR Standard - Bulletin 114
IIAR Phase	VAP
Language	English
Pipe Marker Style	I
Printer and Label Applications	Pipe Marker
Brady Material Number	B-689
Label Properties	Harsh Environment Labels
Material	Coiled Plastic
Resistance Properties	Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
Average Outdoor Durability	5 to 8 Years
Character Height (mm/cm/m)	19.1 mm
Dimensions (Metric)	228.6 mm H
Height (in/ft/yd)	9 in
Maximum Outside Pipe Diameter (in/ft/yd)	2.375 in
Maximum Service Temperature °C	120 °C
Minimum Outside Pipe Diameter (in/ft/yd)	1.5 in
Minimum Service Temperature °C	-40 °C
Overall Size	Fits Pipes 1.5" Dia. Thru 2.375in Dia.
Sign Size-General	9 in x 8 in
Thickness (in/ft/yd)	0.006 in
Width (in/ft/yd)	8 in

Brand Name	Brady®
Color	Black/Blue/Green on Orange
Compatible Surface Types	Curved; Rough
IIAR Legend	AMMONIA
IIAR Pressure Level	LOW
Pipe Marker Mounting Style	Wrap Around
Primary Noun, Basic Function	Pipe Marker
Self-Adhesive Pipe Marker Format	Die-Cut on Cards
Indoor or Outdoor Use	Outdoor Use
Laminated	Polyester Overlaminate
Material Properties	Self-laminating
SAP B-Number	B-689
Character Height (in/ft/yd)	0.75 in
Dimensions	9 in H x 8 in W
Dimensions 2	9 in H x 8 in W
Height (mm/cm/m)	228.6 mm
Maximum Outside Pipe Diameter (mm/cm/m)	60.33 mm
Maximum Service Temperature °F	248 °F
Minimum Outside Pipe Diameter (mm/cm/m)	38.1 mm
Minimum Service Temperature °F	-40 °F
Roll/Tape Size (in/ft/yd)	9 in H x 8 in W
Size	I
Thickness (mm/cm/m)	0.152 mm
Width (mm/cm/m)	203.2 mm
