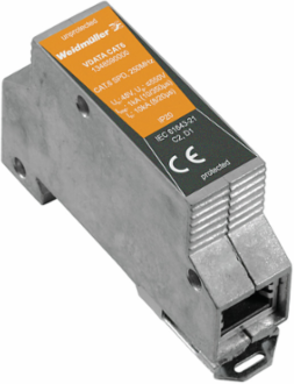

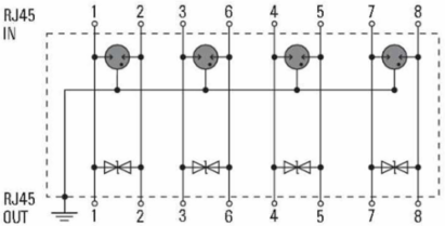

Weidmuller 1348590000 VDATA CAT6
- MPN: 1348590000
- PPN: WDM-1348590000
CAD
$347.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Terminal rail fixing, Surge protection, 1 A, According to IEC61643-21
Documentation & Downloads
Specifications
General Data
| Colour | Silver grey |
|---|---|
| Protection degree | IP20 |
| Segment | Data surge protection |
| Version | Cat.6 |
| Design | miscellaneous, Adapter plug |
|---|---|
| Rail | TS 35 x 15, TS 35 x 7.5 |
| Suitable for | RJ45 plug |
Approvals
| Approvals | CE, EAC, UL |
|---|---|
| UL File Number Search | E311081 |
| ROHS | Conform |
|---|
Insulation Coordination Acc. To En 50178
| Pollution severity | 2 |
|---|
| Surge voltage category | III |
|---|
Rated Data Iec / En
| Discharge current I | 5 kA |
|---|---|
| Frequency range, max. | 250 MHz |
| Lightning test current, I | 1 kA |
| Protection level U | ≤ 550 V |
| Requirements category acc. to IEC 61643-21 | C2, D1 |
| Signal transmission properties (-3 dB) | 250 kHz |
| Suitable for | RJ45 plug |
| Surge current-carrying capacity D1 | 1 kA 10/350 μs |
| Volume resistance | < 0.1 Ω |
| Wire-wire capacitance @ 1 MHz, 1 Vrms | 30 pF |
| Discharge current, I | 1 kA |
|---|---|
| Insertion loss | ≤ 1 dB @ 250 MHz |
| Max. continuous voltage, Uc (AC) | 48 V |
| Rated current I | 1 A |
| Response time | < 1 ns |
| Standards | According to IEC61643-21 |
| Surge current-carrying capacity C2 | 10 kA |
| Voltage type | AC/DC |
| Wire-PE capacitance @ 1 MHz, 1 Vrms | 20 pF |
Dimensions And Weights
| Width | 19 mm |
|---|---|
| Height | 75 mm |
| Depth | 46 mm |
| Net weight | 137 g |
| Width (inches) | 0.748 inch |
|---|---|
| Height (inches) | 2.953 inch |
| Depth (inches) | 1.811 inch |
Connection Data
| Wire connection method | RJ45-Port |
|---|
| Type of connection | RJ45-Port |
|---|
Rated Data Ul
| Voltage type | DC |
|---|---|
| Voltage Breakdown (VDC) L-L | 53 V - 73 V |
| Rated Voltage U | 48 V |
| Voltage Breakdown (VDC) L-G | 72 V - 120 V |
|---|---|
| Certificate No. (UL) | E311081 |
Classifications
| ETIM 6.0 | EC000943 |
|---|---|
| eClass 9.0 | 27-13-08-07 |
| eClass 10.0 | 27-13-08-07 |
| ETIM 7.0 | EC000943 |
|---|---|
| eClass 9.1 | 27-13-08-07 |
| UNSPSC | 30-21-19-21 |
Product Information
| Product information | UL File e311081 |
|---|
Temperatures
| Humidity | 0...95 % (no condensation) |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...80 °C |
