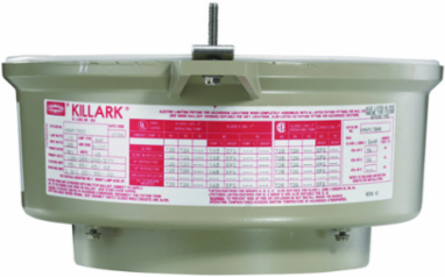

Killark VE4Q0084E30 Emergency CFL Quad-Pin 84W Fixture, 120-277V, Class I Division 2, IP66
Killark VE4Q0084E30 Emergency CFL Quad-Pin 84W Fixture, 120-277V, Class I Division 2, IP66
- MPN: VE4Q0084E30
- UPC: 783936079868
- PPN: HBL-VE4Q0084E30
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
VE4 84W Emergency, 120/277V CFL Quad-Pin Class I Div. 2
Features
- Quad-Pin triple-tube long-life compact fluorescent lamps included
- World Voltage 120-277VAC 50-60 Hz
- LED charging indicator light visible through lens
- Prewired terminal block for easy power connection
- Two lamp models include two independent redundant systems
- Six mounting splice box types - Pendant, Ceiling, Wall bracket, Cone Top, 25° Angle Stanchion, Straight Stanchion.
- Normally shipped as components for fast delivery or may be ordered factory assembled.
- Options for Fuses and Quick Disconnect
- The VE4Q Series Emergency Compact Fluorescent High bay luminaires are designed for easy installation in high bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments.
Specifications
Specifications
- Country of Origin
- United States
- IP Rating
- IP66
- Optic Type
- Luminaire Only
- Finish Type
- Powder Epoxy Paint
- Lamp Type
- Quad Pin
- Wattage
- 84 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumens Per Watt
- 16.7
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2
Lumens1400
Voltage Rating120-277 VAC
Frequency Rating50/60 Hz
Mounting TypeLuminaire Only
ARRA CompliantContact Manufacturer
Description - InvoiceVE4 EMRG CFL QUAD-P 84E 120/277V C1D2
Harmonization Code9405416000
MSDS FlagNo
Lumen Range0-2,000 lm
Light SourceCompact Fluorescent
SeriesVE4Q Series
Carton - SCC-14 Next Lower Level Sub Pack00783936079868
Certifications
- EU RoHS Indicator
- Contact Manufacturer
