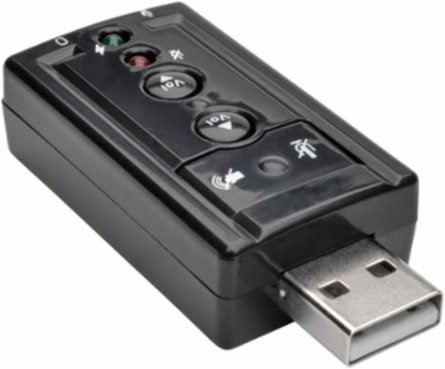

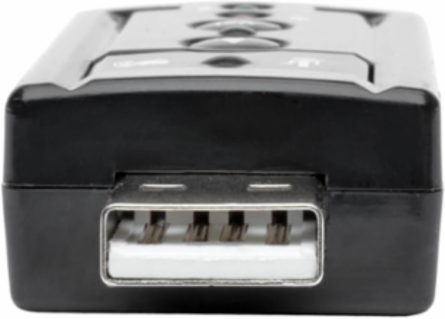

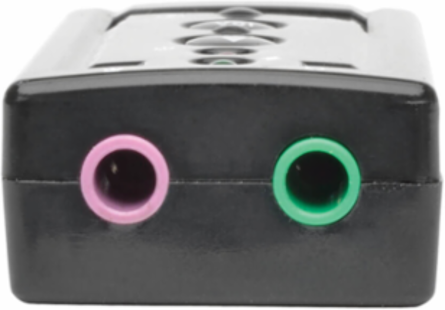

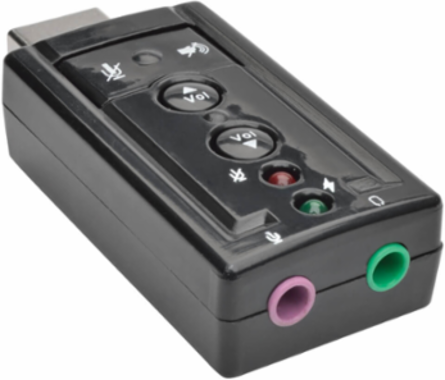

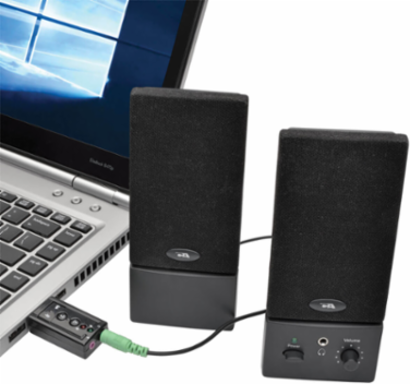

Tripp Lite U237-001 Virtual 7.1-Channel USB External Sound Card with Dual 3.5 mm Ports
- MPN: U237-001
- UPC: 037332192745
- PPN: TRP-U237-001
CAD
$14.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adds external microphone, speaker and/or headphone ports, as well as volume and mute controls, to your computer or laptop via USB port. An inexpensive replacement for damaged sound cards or audio connectors.
Features
- Customizable audio settings via included CD software
- Supports 3D and virtual 7.1-channel surround sound
- LEDs indicate status, activity and speaker/microphone mute
- Plug and play—no external power supply required
- Compatible with Windows, Mac and Linux
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Driver Required | No |
| Audio Specification | 7.1 Surround Sound |
|---|---|
| Technology | Stereo Audio; USB; USB 2.0 (High Speed) |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH, WEEE |
|---|
Connections
| Ports | 2 |
|---|---|
| Side B - Connector 1 | (2) 3.5MM (FEMALE) |
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 5.80 x 2.17 x 4.20 |
| Unit Dimensions (hwd / in.) | 0.55 x 2.2 x 1 |
| Unit Weight (lbs.) | 0.02 |
| Material of Construction | PVC |
|---|---|
| Shipping Weight (lbs.) | 0.10 |
| Unit Packaging Type | Clamshell |
User Interface, Alerts & Controls
| LED Indicators | Red (Speaker/Mic Mute), Green (Active) |
|---|
Input
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Relative Humidity | 5% to 90% RH, Non-Condensing |
| Power Consumption (Watts) | 0.5 |
| Storage Temperature Range | 14 to 131 F ( -10 to 55 C) |
|---|---|
| BTUs | 1.7 BTU/Hr |
Overview
| UPC Code | 037332192745 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
