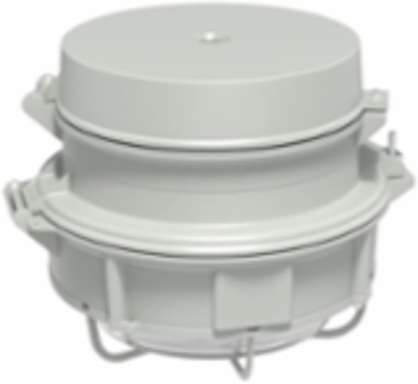

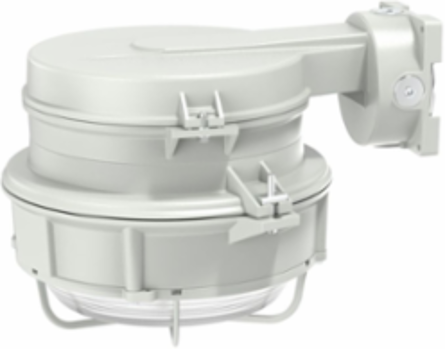

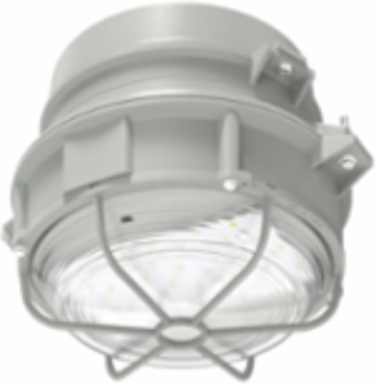

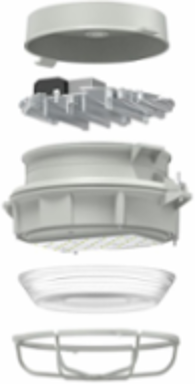

Killark VMLXC533G High Bay LED Light Fixture, 5000 Lumens, 40 Watts, Class I, Div. 2 Rated

High Bay LED Light Fixture, 5000 Lumens, 40 Watts, Class I, Div. 2 Rated - https://media.province-electric.com/325/synd_hubbell/medium/8c038ce1da786d6d7e3578e1ee79274851d4757c-medium.png

High Bay LED Light Fixture, 5000 Lumens, 40 Watts, Class I, Div. 2 Rated - https://media.province-electric.com/325/synd_hubbell/medium/c828fec01e60191ce120cd5903e4f2f50f92a981-medium.png

High Bay LED Light Fixture, 5000 Lumens, 40 Watts, Class I, Div. 2 Rated - https://media.province-electric.com/325/synd_hubbell/medium/d3c38779abb0c88089d445910b2cd7dddf386f81-medium.png

High Bay LED Light Fixture, 5000 Lumens, 40 Watts, Class I, Div. 2 Rated

MPN: VMLXC533G
UPC: 783936186856
PPN: HBL-VMLXC533G

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

VMLX-C Retrofit Solution for Class 1, Division 2, Zone 2 Highbay Applications, 5,000 lumens, 347-480V

Features

Direct Retrofit to Crouse Hinds Series fixture mounts
No adaptor or additional accessory required
No additional sealing or gasketing needed
Light output range from 5,000 – 18,000 lumens
Type I, III, V, V-Wide optic pattern options for various light distribution
Globe and guard come standard already assembled
Terminal blocks come standard for quick and easy installation
Emergency battery backup options
Thermal foldback protection with active temperature monitoring
6KV Surge Protection as standard with supplemental surge protection options

Specifications

Country of Origin: United States

Lumens: 5000

Voltage Rating: 347-480 VAC

Color Temperature: 5000 K

Frequency Rating: 50-60 Hz

Class Code: D20

Harmonization Code: 9405426000

Sub Class Code: D20D202

Base Unit of Measure: EA

Hazardous Rating(s)Class I, Div. 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Div. 1 & 2, Groups E, F, G;Class III;Suitable for Wet Locations;Type 3, 4X;IP66;Marine Rated (US only)

Optic TypeGlass Globe

ApplicationClass I Division 2 Hazardous Locations;Class II Hazardous Dust;Zone 2 Hazardous Locations;Off and On Shore Oil and Gas;Wet and Marine Locations;Food and Beverage;Heavy Industrial

Finish TypePowder Epoxy Paint

Wattage40 W

Freight Class Code08816008

Image Actual Or RepresentativeA

Light SourceLED

Carton - SCC-14 Next Lower Level Sub Pack00783936186856
