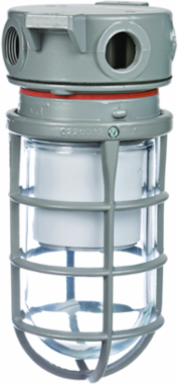

Killark VSL1330F1HG-CP LED Vapor Tight Fixture 13 Watt 1211 Lumens 120-277 VAC
- MPN: VSL1330F1HG-CP
- UPC: 783936082653
- PPN: HBL-VSL1330F1HG-CP
CAD
$1782.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The VSL Series is a Vapor Tight/ Utility fixture using energy efficient LED's. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. With the design of this fixtures internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins.
Features
- Integral driver – maintains fixture’s compact profile to fit in existing spaces
- Ambient suitability -40°C to 55°C
- World Voltage 120 - 277VAC 50/60Hz
- Instant On – Including after power interruption
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The VSL Series is a Vapor Tight/ Utility fixture using energy efficient LED's. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. With the design of this fixtures internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins.
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1/2"
- Optic Type
- Glass Globe - Clear
- Application
- Killark ‘VSL’ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSL’s are sized to replace “Utility” type fixtures (incandescent or CFL’s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas
- Frequency Rating
- 50/60 Hz
- Wattage
- 13 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumens Per Watt
- 100
- Light Source
- LED
- Series
- VSL Series
- BOX SIZE
- (in)
- NAICS Code
- 3351222112
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC,IIB,IIA;Class II, Division 2, Groups F, G;Class III, Divsions 1 & 2
Lumens1300
Voltage Rating120-277 VAC
Finish TypePowder Epoxy Paint
Mounting TypeCeiling w/Feet & Adapter
ARRA CompliantContact Manufacturer
Description - InvoiceLED 13 120-277 1/2" CLG TEM GLOB/GRD CP
Harmonization Code9405116020
MSDS FlagNo
Lumen Range0-2,000 lm
Current Rating60 A
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936082653
Certifications
- EU RoHS Indicator
- Contact Manufacturer
