Weidmuller 1689390001 VT SF 1/21 MC NE WS V0
- MPN: 1689390001
- PPN: WDM-1689390001
CAD
$0.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

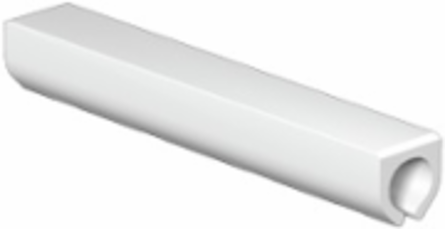

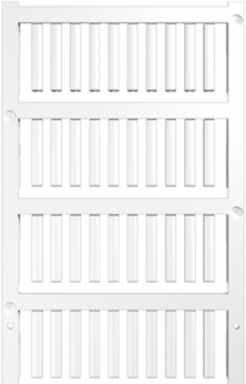

SlimFix, Conductor and cable markers, 1.7 - 2.1 mm, 21 x 3.2 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Material
- Polyamide 66
- Recommended industries
- Transportation, Machinery
- Type of printing
- neutral
- Width
- 3.2 mm
HalogenNo
Operating temperature range-50...120 °C
Size of labelling field21 x 3.2 mm
UL 94 flammability ratingV-0
compatible printer1324380000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 3.2 mm
- Height
- 21 mm
- Depth
- 3.2 mm
- Net weight
- 0.2 g
Width (inches)0.126 inch
Height (inches)0.827 inch
Depth (inches)0.126 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 1.7 - 2.1 mm
- Conductor O.D., min.
- 1.7 mm
- Conductor cross-section, min.
- 0.5 mm²
Conductor O.D., max.2.1 mm
Conductor cross-section, max.0.75 mm²
HalogenNo
