Weidmuller 1718480001 VT SF 2/12 MC NE WS V0
- MPN: 1718480001
- PPN: WDM-1718480001
CAD
$0.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

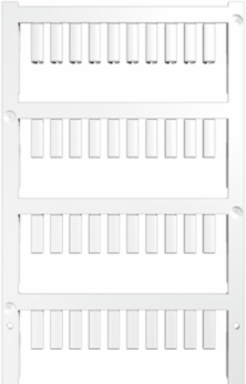

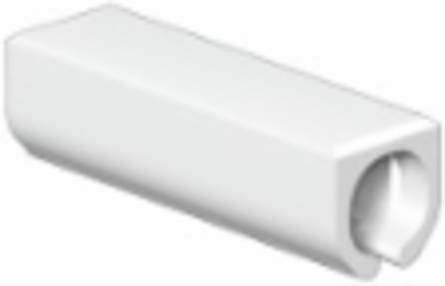

SlimFix, Conductor and cable markers, 2.2 - 2.9 mm, 12 x 3.6 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Material
- Polyamide 66
- Operating temperature range
- -50...120 °C
- Size of labelling field
- 12 x 3.6 mm
- UL 94 flammability rating
- V-0
- compatible printer
- 1324380000
HalogenNo
Material colour according to resistance code9
Recommended industriesTransportation, Machinery
Type of printingneutral
Width3.6 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 3.6 mm
- Height
- 12 mm
- Depth
- 3.65 mm
- Net weight
- 0.235 g
Width (inches)0.142 inch
Height (inches)0.472 inch
Depth (inches)0.144 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 2.2 - 2.9 mm
- Conductor O.D., min.
- 2.2 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.2.9 mm
Conductor cross-section, max.1.5 mm²
HalogenNo
