Weidmuller 1689490002 VT SFX 14/23 MC NE BL V0
- MPN: 1689490002
- PPN: WDM-1689490002
CAD
$0.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

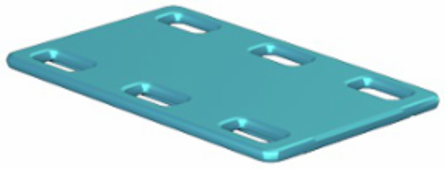

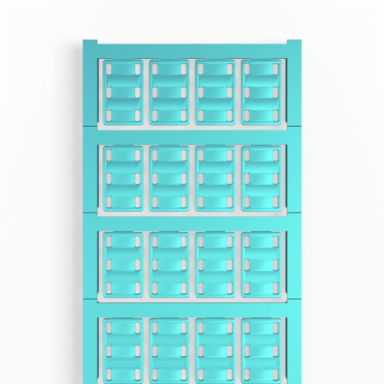

SlimFix X, Conductor and cable markers, 7 - 40 mm, 23 x 14 mm, blue
Documentation & Downloads
Specifications
General Data
- Colour
- blue
- Material
- Polyamide 66
- Operating temperature range
- -50...120 °C
- Size of labelling field
- 23 x 8 mm
- UL 94 flammability rating
- V-0
- Width
- 14 mm
HalogenNo
Material colour according to resistance code6
Recommended industriesTransportation, Machinery
Type of printingneutral
VersionInstallation with cable ties
compatible printer1324380000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 14 mm
- Height
- 23 mm
- Depth
- 0.5 mm
- Net weight
- 0.688 g
Width (inches)0.551 inch
Height (inches)0.906 inch
Depth (inches)0.02 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 7 - 40 mm
- Conductor O.D., min.
- 7 mm
- Conductor cross-section, min.
- 16 mm²
Conductor O.D., max.40 mm
Conductor cross-section, max.500 mm²
HalogenNo
