Weidmuller 1727740001 VT SFX 9/24 MC NE WS V0
- MPN: 1727740001
- PPN: WDM-1727740001
CAD
$0.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

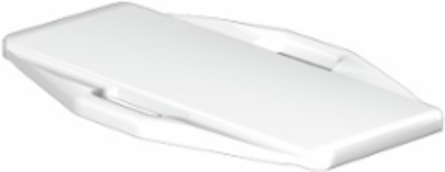

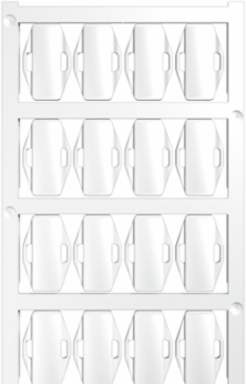

SlimFix X, Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Material
- Polyamide 66
- Operating temperature range
- -50...120 °C
- Size of labelling field
- 23.9 x 9 mm
- UL 94 flammability rating
- V-0
- Width
- 15 mm
HalogenNo
Material colour according to resistance code9
Recommended industriesTransportation, Machinery
Type of printingneutral
VersionInstallation with cable ties
compatible printer1324380000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 15 mm
- Height
- 24 mm
- Depth
- 0.5 mm
- Net weight
- 0.65 g
Width (inches)0.591 inch
Height (inches)0.945 inch
Depth (inches)0.02 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 7 - 40 mm
- Conductor O.D., min.
- 7 mm
- Conductor cross-section, min.
- 16 mm²
Conductor O.D., max.40 mm
Conductor cross-section, max.500 mm²
HalogenNo
