Weidmuller 2445090000 WAD 12 MC B GE/SW
- MPN: 2445090000
- PPN: WDM-2445090000
CAD
$1.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

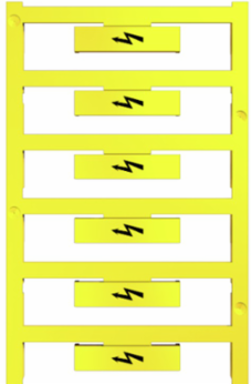

Group markers, Cover, 36.2 x 11.9 mm, yellow
Specifications
Dimensions And Weights
- Width
- 11.9 mm
- Height
- 36.2 mm
- Net weight
- 1.98 g
Width (inches)0.469 inch
Height (inches)1.425 inch
Classifications
- ETIM 6.0
- EC000761
- eClass 9.0
- 27-14-11-37
- eClass 10.0
- 27-14-11-37
ETIM 7.0EC000761
eClass 9.127-14-11-37
General Data
- Colour
- yellow
- Halogen
- No
- Operating temperature range
- -40...100 °C
- UL 94 flammability rating
- V-2
- compatible printer
- 1324380000
Colour of printingblack
MaterialPolyamide 66
Type of printingSymbols
Width11.9 mm
Approvals
- ROHS
- Conform
