Bryant HBL263 3-Gang Large Data Wall Box 3.25 Inch Deep, Pre Galvanized Steel Construction

3-Gang Large Data Wall Box 3.25 Inch Deep, Pre Galvanized Steel Construction
3-Gang Large Data Wall Box 3.25 Inch Deep, Pre Galvanized Steel Construction
3-Gang Large Data Wall Box 3.25 Inch Deep, Pre Galvanized Steel Construction
  • MPN: HBL263
  • UPC: 783585445472
  • PPN: HBL-HBL263
  • UNSPSC: 39121303

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$86.89/ EA

Description

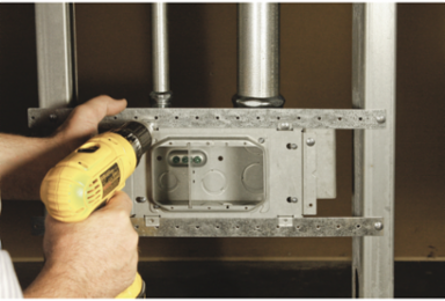

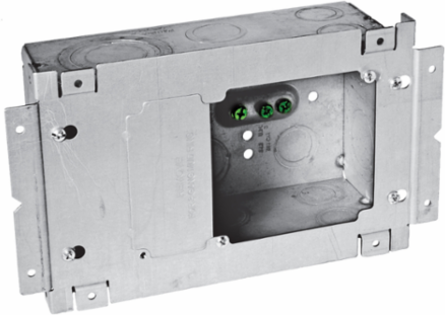

Wall Boxes, Data Box, 3-Gang, Large Data Box, 3.25" Deep, With Mounting Bracket

Features

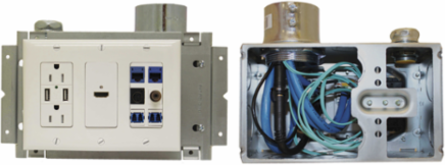

  • Ideal for delivering power, data and AV side-by-side
  • Includes Raised Grounding Screws
  • Compatible with 3-Gang Mud Rings, HBL792, HBL793 or HBL794
  • Accepts HBL981 and HBL981AVD Low Voltage Dividers
  • 113.3 Cu.In. Capaicty
  • Optional 2 or 3-Gang installation;(2) 1", 1-1/4", 1-1/2" and 2" Concentric Knockouts

Specifications

Specifications

Country of Origin
China
Width
5.500 in
Mounting Method
Integral Mounting Bracket
Application
Flush mount in wall
Knockouts
Sides- (4) 1/2"-3/4" TKO, (4) 3/4"- 1" TKO, (2) 1"- 1-1/4" TKO, (2) 1"-2" KO. Back- (2) 1/2"-3/4" TKO, (2) 3/4"- 1" TKO, (2) 1"- 1-1/4" TKO
Special Features
Optional 2 or 3-Gang installation;(2) 1", 1-1/4", 1-1/2" and 2" Concentric Knockouts
Type
Boxes
Description - Invoice
WALLBOX, 3-GANG, LARGE DATA W/COV
Harmonization Code
7326908688
MSDS Flag
No
Base Unit of Measure
EA
Carton - Gross Weight per Pack
17 lb.
Carton - Pack Description
Carton
Carton - Total Units
6 EA
Each - Pack Description
Each
Pallet - GTIN - Package
70783585445471
Pallet Length
48.000 in
Pallet Width
40.000 in
Application - For Use OnWall
Industry Standard(s)UL Listed
Size3-Gang
ColorNatural
MaterialPre Galvanzied Steel
StandardUL Listed
Construction Material - MainPre Galvanzied Steel
Freight Class Code06168002
Image Actual Or RepresentativeA
SeriesLarge Capacity
BOX SIZE7.500x17.000x10.400 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585445472
Case Weight18.350 lb.
Lowest Level UOMEach
Pallet Height45.000 in
Pallet Weight1101.000 lb.

Certifications

Certified Listed
UL Listed
EU RoHS IndicatorNo
