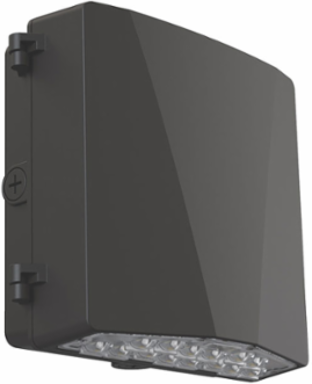

RAB 081470 Wall Light LED WPF1-LED25A15 25A15W 120-277V Variable Temp Bronze Finish Dimmable MS180DIM Motion Sensor
- MPN: 081470
- UPC: 061184814708
- PPN: RAB-081470
CAD
$178.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The WPS/WPF-LED Series of fixtures are full cut off and semi cut off wall packs in a sleek, modern design ideal for perimeter lighting in schools, condominiums, shopping malls, and commercial applications. Fixtures are versatile with features such as CCT select, lumen adjustability and wide voltage range.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 10.4 Inches
- Lumens
- 3398
- Efficacy
- 142.9
- THD
- 0.144
- CRI
- 73
- LED life
- 100,000 hours
- Materials
- Die Cast Aluminum
- Voltage
- 120-277V
- Dimmable
- Yes
Width5.3 Inches
Depth10.9 Inches
Watts24
Operating Temperature-40C to +40C
PF0.92
Surge Protection2kV
LensPC Frosted Lens
CCTVK
FinishBronze
Lighting ControlsMS180DIM Motion Sensor
