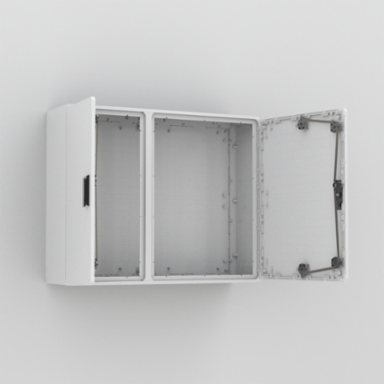

nVent Hoffman UDP100125 Wall mounted, 1000X1250X320, Combinable, no MP, polyester, IP54, 2 doors
- MPN: UDP100125
- UPC: 783510530433
- PPN: HOF-UDP100125
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The enclosure may be combined to extend the width/depth to accommodate large components and maintain communication. This Polyester Modular Double Door Enclosures, UDP-DD, UDP100125 item measures 1000x1250x320mm has a material of Polyester color Light Gray, finish Smooth.
Features
- Material: Fibre-glass reinforced polyester.
- Body: Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets. To a pole by use of EPF, to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In double door enclosures, sealing is ensured by a neoprene gasket.
- Door: Flush mounted door, with or without window and 100° opening. For larger sizes, a door support is supplied for easier closing.
- Lock: Premounted handle, suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures).
- Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
- Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui=1000V.
- Protection: Complies with IP54 for double door enclosures. Impact resistance IK 10.
- Approvals: CE, GOST. For further approvals, please contact nVent HOFFMAN's sales department.
- Finish: RAL 7035, precoloured raw material.
- Delivery: Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery).
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,250
- Door Quantity
- 2
- Protection Rating
- IP65
- Finish
- Smooth
- Color Code
- RAL 7035
Height (H)1,000
Depth (D)320
Weight41
MaterialPolyester
ColorLight Gray
