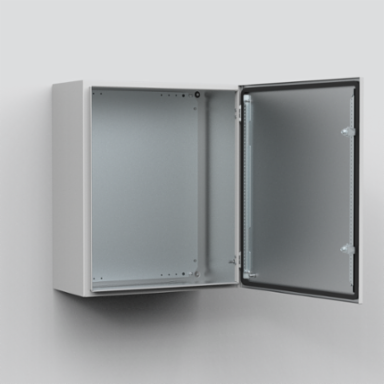

nVent Hoffman MASE0404021R5 Wall mounted EMC, 400x400x210, Compact encl., 1-door, with MP, mild steel, IP54
- MPN: MASE0404021R5
- UPC: 783510490164
- PPN: HOF-MASE0404021R5
CAD
$3736.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The galvanised steel single door wall mounted enclosure range, MASE, is designed to meet EMC requirements. This EMC Single Door Enclosure, MASE, MASE0404021R5 item measures 400x400x210mm has a material of Steel color Light Gray, finish Galvanized.
Features
- Material: Body: 1.2 mm zinc plated steel / 1.5 mm MASE0606021R5 and above. Door: 1.2 mm zinc plated steel / 1.5 mm MASE0606021R5 and above / 2 mm MASE1006030R5 and above. Mounting plate: 2 mm galvanized steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges are mounted for right hand opening only. From size MASE0505021R5 and above there are two removable mounting profiles on the door. Sealing is ensured by a conductive EMC gasket.
- Lock: Chrome plated double-bit lock, with 3 mm insert and 90° movement. 1000 mm high enclosures and above have espagnolette three point locking system.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom are holes to facilitate cable fixing. Fixed on to M8 press welded studs to the rear of the enclosure. All sides from 800 mm and above are strengthened by folded edges. By using the AMG accessory, the mounting plate can be adjusted to any depth.
- Gland Plate Opening: No gland plate opening, to ensure maximum EMI protection.
- Earthing: The door is earthed by means of a separate earthing stud M8.
- Finish: RAL 7035 structured powder coating on the outside only.
- Protection: IP 54, TYPE 12, IK 10.
- Delivery: Zinc plated enclosure body and door, painted on the outside. Door equipped with EMI conductive gasket. Two door mounting profiles, from size MASE0505021R5 and above. Earthing facilities.
- Electric conductivity between the enclosure's body and door is guaranteed, which ensures a good Faraday effect is created
- Component and equipment failure, and unnecessary downtime is avoided as the components are protected from electromagnetic interferences as well as from water and dust entering the enclosure
- Only EMC rated accessories or peripherals that affect the enclosure's external walls should be used, using other accessories or peripherals will downgrade the enclosure's EMC performance
Documentation & Downloads
Specifications
Additional
- Protection Rating
- IP54, Type 12, IK10
- Latch Quantity
- 1
- Dimensions
- 400 x 400 x 210 mm
- Material
- Mild Steel
- Color
- Light Gray, RAL 7035
- Lock Type
- Double-bit lock
- Door Opening Angle
- 130
Max Mounting Depth192 mm
Weight9.65 kg
Mounting TypeWall mounted
FinishGalvanized, RAL 7035 structured powder coating (outside)
Door Count1
EarthingStud M8
Mounting Plate Thickness2 mm galvanized steel
