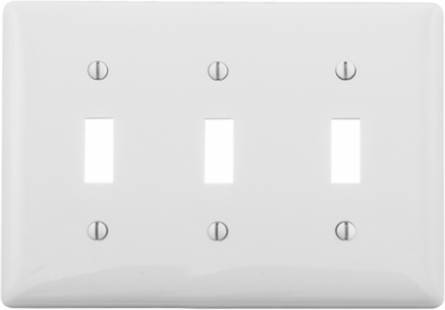

Bryant NP3W Nylon Wallplate 3-Gang Toggle 4.62 Inch x 6.5 Inch, White, UL Listed
- MPN: NP3W
- UPC: 883778101779
- PPN: HBL-NP3W
- UNSPSC: 39121704
CAD
$1.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Wallplates and Box Covers, Wallplate, Nylon, 3-Gang, 3) Toggle, White
Features
- Reinforcement ribs for extra strength
- Captive screw feature holds mounting screw in place
- High-impact, self-extinguishing nylon material
- Smooth, easy to clean finish
- Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 0.25 in
- Length
- 4.62 in
- Application
- Protection against contact of live terminals and wiring. Provides finished look to installation.
- Orientation
- Vertical Mount
- Special Features
- Standard Size is 1/8" larger to give you extra coverage to hide rough box openingsCurved corners for improved aesthetics, for use in any applicationAlso available in mid-sized and pre-markedReinforcement ribs for extra strengthCapt
- Thickness
- 0.25
- Weight
- 0.15 lb.
- Operating Temperature
- -40°Cto 85 °C
- Style
- 3-Toggle
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- N1373
- Material - Mounting Hardware
- Screw Mounting
- Number of Gang(s)
- 3-Gang
- BOX SIZE
- 2.100x6.800x5.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778101779
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Dimensions4.62 in x 6.5 in x 0.25 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorWhite
Size4.62 in x 6.5 in x 0.25 in
StandardUL Listed
TypeToggle
Width6.5 in
ShapeRectangle
Description - InvoiceWALLPLATE, 3-G, 3) TOGG, WH
Harmonization Code3925900000
MSDS FlagNo
Replacement Catalog NumberP3W
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight15.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
