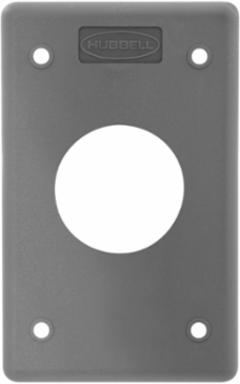

Hubbell Wiring Device-Kellems HBLP7FS 1-Gang Gray Cover Plate, 1.40 Inch Opening, Impact Resistant
- MPN: HBLP7FS
- UPC: 783585318141
- PPN: HBL-HBLP7FS
- UNSPSC: 39121304
CAD
$16.45
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wallplates and Boxes, Box Covers, 1-Gang, 1) 1.40" Opening, For Portable Outlet Box, Gray
Features
- Impact resistant Valox® cover plate
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Industry Standard(s) | C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R |
| Standards - RoHS Compliance Status | CM |
| Standard | C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R |
| Weight | 0.05 lb. |
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
| Style | Non-Metallic Fs Cover Plate |
| Description - Invoice | POB COVER PLATE, 1.40"; GRAY |
| Harmonization Code | 3925900000 |
| MSDS Flag | No |
| Cord Range | .38" - .75" |
| BOX SIZE | 3.600x7.700x5.200 (in) |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585318141 |
| Case - Total Units | 100 EA |
| NAICS Code | 3359326105 |
| Width | 4.000 in |
|---|---|
| Performance | Environmental - Flammability - UL 94V-0, 94-5VA classification;Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94.;Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates;Environmental - Operating Temperature - 80°C maximum;-35°C minimum;Environmental - UV Resistance - All materials are UV stabilized |
| Color | Gray |
| Type | Cover Plate |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Class Code | A24 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A24A290 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 EA |
| Case Weight | 8.700 lb. |
