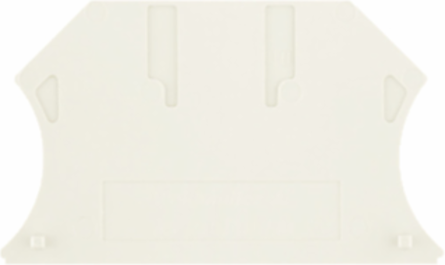

Weidmuller 1050090000 WAP 2.5-10 WS
- MPN: 1050090000
- PPN: WDM-1050090000
CAD
$1.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 1.5 mm
- Height
- 56 mm
- Depth
- 33.5 mm
- Net weight
- 2.64 g
Width (inches)0.059 inch
Height (inches)2.205 inch
Depth (inches)1.319 inch
Additional Technical Data
- Installation advice
- Feed-through (bushing), Direct mounting
Snap-onNo
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourwhite
Classifications
- ETIM 6.0
- EC000886
- eClass 9.1
- 27-14-11-33
- UNSPSC
- 30-21-18-27
ETIM 7.0EC000886
eClass 10.027-14-11-33
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
