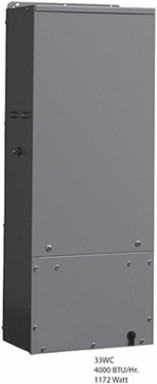

nVent Hoffman 330416GW010 Water-Cooled Indoor
- MPN: 330416GW010
- UPC: 783510232535
- PPN: HOF-330416GW010
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Water-Cooled Indoor
Features
- Heat is removed from the system by means of the water cooling the refrigerant; no external air movers or condenser coils to get clogged
- Robust reciprocating compressor
- Mounting hardware, gaskets and user manual furnished with the unit
- Easy-mount flanges for simple installation
- UL Listed or Recognized to save customers time and money with agency approvals
- Maximum water usage of 2 GPM at 90 F water intake temperature
- Operating temperature range from 50 F/10 C to 125 F/52 C
- R134a earth-friendly refrigerant
- Models for 115 VAC, 230 VAC and 460 V 1-phase power input
- Every unit functionally tested before shipping
- Surge Suppressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- Attractive industrial design with minimal use of visible fasteners
- Electro-Mechanical Thermostat
- Standard Indoor Air Conditioner models also include:
- Reliable mechanical thermostat located behind the front panel of the unit
Specifications
Technical Data
| Fahrenheit Min. | 50 |
|---|---|
| Current Max. (A) | 5.8 |
| Depth (in.) | 8.75 |
| Voltage | 115 |
| Height (in.) | 34.13 |
| Width (in.) | 12.38 |
| Nominal BTU/Hr. | 4000 |
|---|---|
| Catalog Number | 330416GW010 |
| Weight (lb.) | 86 |
| Fahrenheit Max. | 125 |
| Nominal Watts | 1172 |
Description
| Industry Standards: | UL/cUL Listed; Type 12; File No. SA6453UR/cUR Recognized UR/cUR Recognized on select models, reference performance data tables.CEGOST |
|---|
