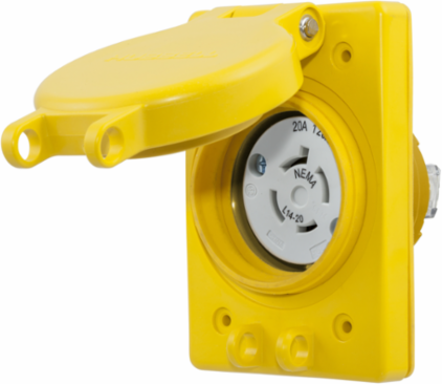

Hubbell Wiring Device-Kellems HBL67W74 Watertight Receptacle NEMA L14-20R, 20A, 125/250VAC, 3-Pole, 4-Wire
- MPN: HBL67W74
- UPC: 783585433172
- PPN: HBL-HBL67W74
- UNSPSC: 39121406
CAD
$191.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 125/250VAC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L14-20R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- Temperature Range
- -40°C to +60°C continuous
- Dielectric Voltage
- 2500 V AC
- Length
- 4.56 in
- Height
- 2.92 in
- Material
- PBT, Thermoplastic elastomer, Stainless Steel, Nickel plated brass, Nylon, Polycarbonate
- NEMA Rating
- L14-20R
- Standards
- Meets NEMA WD-1, WD-6, ANSI; RoHS CM Compliant
- Country of Origin
- US
Voltage125/250 VAC
Number of Wires4-Wire
Temperature Rise30°C max per UL498 at rated current
Dimensions4.56 in x 3.10 in x 2.92 in
Width3.10 in
Wire Size#18 AWG to #8 AWG
Seal TypeThermoplastic elastomer
IP RatingIP69K
ColorYellow
TypeReceptacle
