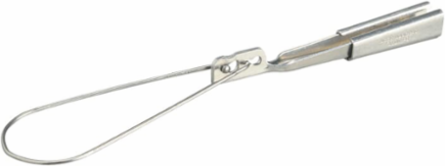

Blackburn W62-1FC-T Aluminum Service Wedge Clamp, 12-1/2 Inch Length, Tension Connection, 35 kV
- MPN: W62-1FC-T
- UPC: 783786073573
- PPN: T-B-W62-1FC-T
- UNSPSC: 39121431
CAD
$23.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Service Wedge Clamp, Aluminum Wedge and Slider, Flexible Bail, Wire Range ACSR 2 - 6 ALUM 1 STR - 6 SOL, AAAC 2 - 6, Modified Tooth Design
Specifications
Additional Information
- Application
- Dead-End Self-supporting Drop Wire
- Connection Type
- Tension
- Insulation Material
- None
- Mounting Type
- Yes
- Product Name
- ALUM WEDGE CLAMP
- Size
- Length 12-1/2 in X Depth Flexible
- Surface Finishing
- Bare
Brand / LabelBlackburn
Effective Date19941115
MaterialAluminum
Number of Conductors1
Product TypeAluminum Service Wedge Clamp
Special FunctionsDrop wire may be cut to exact length for adjustments in drop wire sag. Can be attached to bare neutral at any point in the span. Flexible and rigid bails grip ACSR, AAC and AAAC Conductors.
Voltage Rating35 kV
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4601 >> Cable gland connector
