Thomas & Betts K650RTW WELL REDUC TAP 200A 15/25KV
- MPN: K650RTW
- UPC: 783786628490
- PPN: T-B-K650RTW
- UNSPSC: 26121630
CAD
$481.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

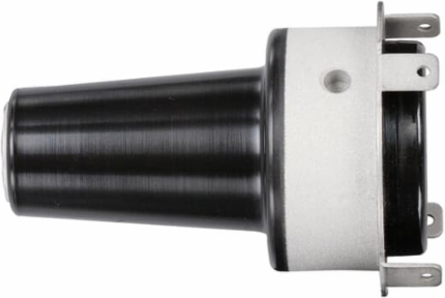

15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
Specifications
Additional Information
| Application | The 15/25kV K650RTW permits a 200 Amp deadbreak or loadbreak tap-off of a 600 Amp connector. The K650RTP 200 Amp tap accepts Elastimold 200 Amp deadbreak and loadbreak inserts. For assembly, a 600SW spanner wrench is required. |
|---|---|
| Effective Date | 19980115 |
| Product Name | ELECTRICAL CONNECTOR,>1000V" |
| Size | 3.00 inch (76.2 mm) Diameter, 5.37 inch (136.3 mm) Long |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Reducing Tap Well |
| Special Functions | Fully rated 15/25kV, 600 Amp Deadbreak Reducing Tap Well. Can be used with 200A Loadbreak or Deadbreak inserts. Provisions for spanner wrench installation. Includes Bail Tabs. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
