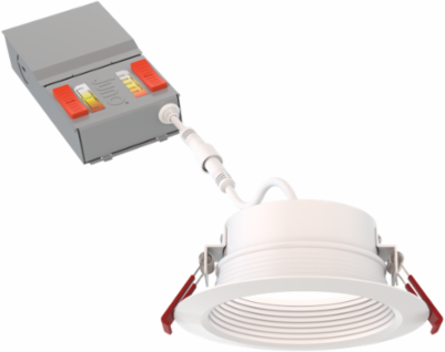

Acuity Brands WF4 SWW5 90CRI MW M6 LITH WF4 SWW5 90CRI MW M6 4IN wafer
- MPN: WF4 SWW5 90CRI MW M6
- UPC: 194994243465
- PPN: LTH-WF4 SWW5 90CRI MW M6
- UNSPSC: 39111515
CAD
$20.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Design Select
Features

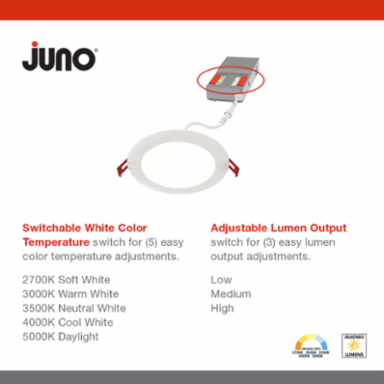

- YOU CHOOSE: Wafer™ LED Downlights contains a switchable white feature allowing you to choose the color temperature in your space - 2700K (Soft White), 3000K (Warm White), 3500K (Neutral White), 4000K (Cool White) or 5000K (Daylight).
- ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life.
- DIMMING: Dimming down to 10 percent
- RATINGS & LISTINGS: Certified for wet locations, CSA certified, Air-Loc certified

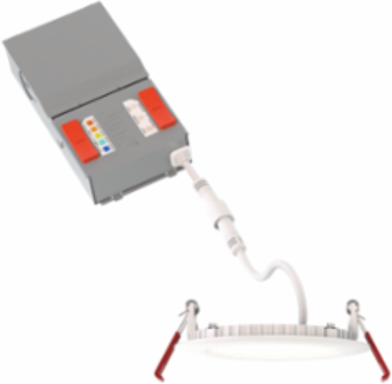

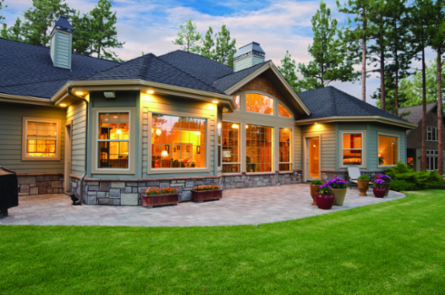

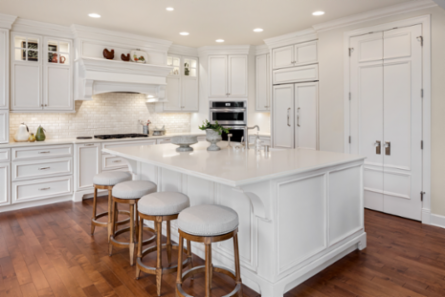

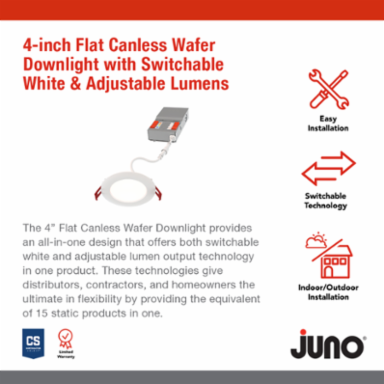

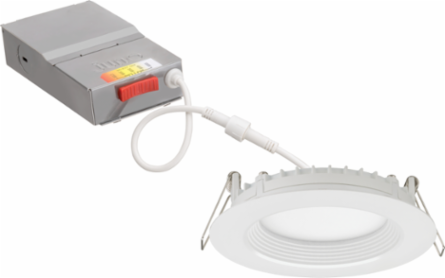

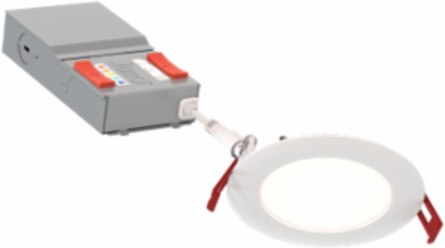

- EASY, FAST, HOUSING-FREE INSTALLATION: The slim design and remote driver box allow the wafer to be installed in plenum spaces as low as 2-inches. The wafer can be installed in confined spaces such as closets, bathrooms, hallways, stairwells and outside.
- NO MAINTENANCE REQUIRED: Long life energy efficient LED.

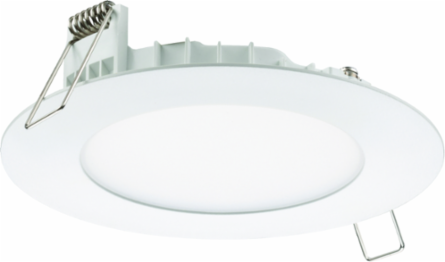

- DESIGN: This innovative wafer-slim design allows easy installation for new construction or remodel from below the ceiling without the requirement of a housing for insulation, it easily replaces up to 65 watt incandescent downlights.
- BATTERY: Field-installable LED emergency driver sold separately.
- WARRANTY: 3-year limited warranty.

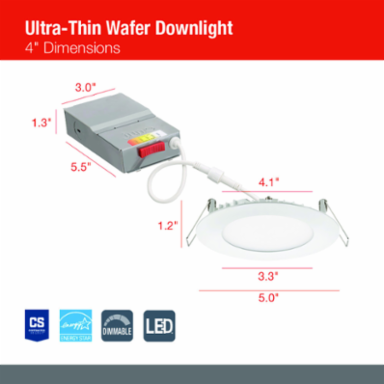

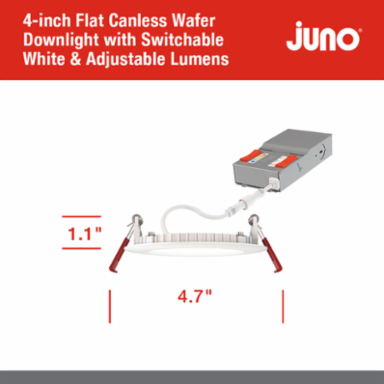

- DIMENSIONS: (l x w x h) 5 in. x 2.8 in. x 1.4 in.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V
- Number of Lamps
- 1
- Lamp Type
- LED - Dynamic
- Lumens
- 670 lm nominal at 3000K
- Beam Angle
- 83.2
- Life
- 50,000 hours at 70% lumen maintenance
- Mounting
- Recessed
- Size
- 4 in
- Height
- 1.2 in
- Type
- Downlight
- Finish
- Matte
- Compliance
- CSA Certified, Air-Loc Certified, ENERGY STAR, JA8, FCC 47 CFR Part 15 Consumer
- Style
- Contemporary
Wattage9 W
Lamp IncludedYes
CRI90+
DimmingTo 10%
Field Angle147.3
Switchable Color Temperature2700K, 3000K, 3500K, 4000K, 5000K
Mounting Ceiling Thickness3/8 in to 1 1/2 in
Width5 in
Aperture Size4 in
MaterialAluminum
ColorWhite
Country of OriginChina
