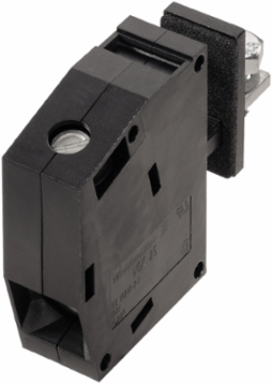

Weidmuller 2444710000 WGK 25 VP GY BX
- MPN: 2444710000
- PPN: WDM-2444710000
CAD
$11.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA)
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 100 A
- Wire cross-section, AWG, min.
- AWG 10
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group C / UL 1059)100 A
Wire cross-section, AWG, max.AWG 3
Approvals
- Approvals
- cURus
- UL File Number Search
- E60693
ROHSConform

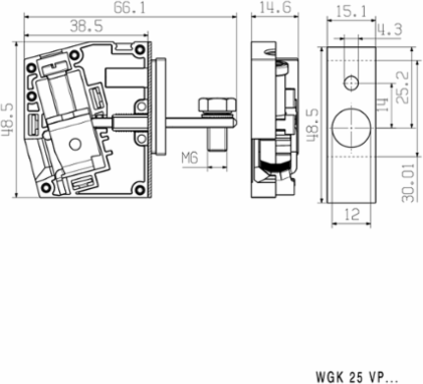

Dimensions And Weights
- Net weight
- 47.92 g

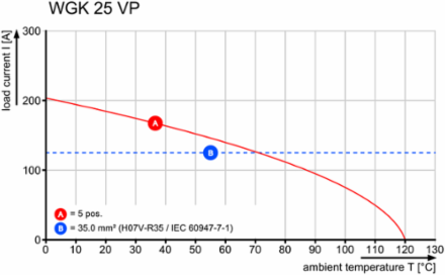

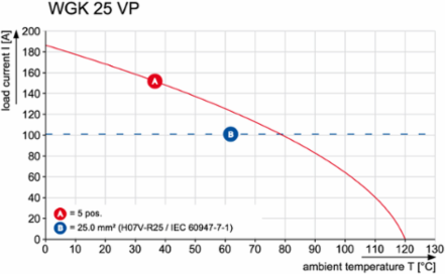

Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 101 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
Rated current, min. number of poles (Tu=20°C)101 A
Rated voltage for surge voltage class / pollution degree III/3690 V
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 7035
- Contact material
- E-Cu
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourgrey
UL 94 flammability ratingV-0
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC001283
- eClass 9.0
- 27-14-11-34
- eClass 10.0
- 27-14-11-34
ETIM 7.0EC001283
eClass 9.127-14-11-34
System Parameters
- Product family
- OMNIMATE Power - series WGK
- Conductor outlet direction
- 180°
- Screwdriver blade
- 1.2 x 6.5
- Tightening torque, max.
- 4.5 Nm
- Stripping length
- 18 mm
Wire connection methodCable lug: ring cable / spade lug
Fitted by customerNo
Tightening torque, min.4 Nm
Clamping screwM 6
Touch-safe protection acc. to DIN VDE 0470IP 20
Packing
- Packaging
- Box
- VPE width
- 0 m
VPE length0 m
VPE height0 m
Notes
- Notes
- Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request WGK: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V WGKV: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 4 mm = 800 V; metal walls: 4 - 6 mm = 690 V WGK…VP: Rated voltage plastic walls: 1 - 6 mm = 800 V; metal walls: 1 - 2.5 mm = 800 V; metal walls: 2.5 - 4 mm = 690 V; metal walls: 4 - 6 mm = 500 V
Conductors Suitable For Connection
- Clamping range, min.
- 4 mm²
- Wire connection cross section AWG, min.
- AWG 10
- Solid, min. H05(07) V-U
- 6 mm²
- Stranded, min. H07V-R
- 10 mm²
- Flexible, min. H05(07) V-K
- 6 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 4 mm²
- Max. clamping range
- 35 mm²
Clamping range, max.35 mm²
Wire connection cross section AWG, max.AWG 3
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R35 mm²
Flexible, max. H05(07) V-K16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.25 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated current (Use group B / CSA)
- 100 A
- Wire cross-section, AWG, min.
- AWG 10
Rated voltage (Use group C / CSA)600 V
Rated current (Use group C / CSA)100 A
Wire cross-section, AWG, max.AWG 3
