Weidmuller

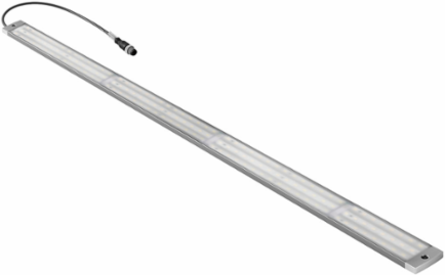

Weidmuller 2535890000 WIL-765-W-M12G-0.3U-S

  • MPN: 2535890000
  • PPN: WDM-2535890000

CAD

$616.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

WIL-765-W-M12G-0.3U-S

Documentation & Downloads

Specifications

Approvals

ApprovalsCE, CULUS
UL File Number SearchE354496
ROHSConform

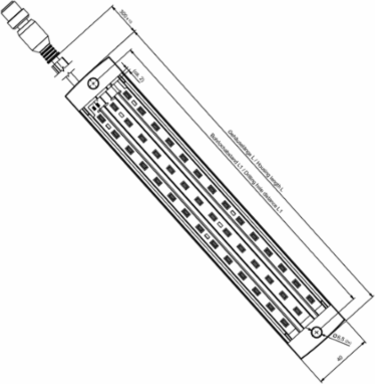

Dimensions And Weights

Width765 mm
Height8 mm
Depth40 mm
Net weight550 g
Width (inches)30.118 inch
Height (inches)0.315 inch
Depth (inches)1.575 inch

Standards

Certificate no. (cULus)E354496

Connection Data

Versionpin, straight
Connection threadM12
WiringPin 4 (Strand: black) control white LED, Pin 3 (Strand: blue)
CodingA
Tightening torque0.8 Nm

General Technical Data

Number of LEDs147
Luminosity3,470 cd
Emitting angle40 °
Operating life60.000 h
Drill hole spacing750 mm
Protection degreeIP67
Light colour (CCT)6500K, White
Light current2,177 lm
Illumination level749 lux
Type of mountingScrew mounting
Impact resistanceIK05

Cable Technical Specifications

Cable MaterialPUR
Cable length0.3 m
Sheathing colourblack

Electric Data

Rated voltage (text)24 V DC
Power29 W
Rated current1,00 A
DimmableYes

Material Data

Housing main materialhard anodised aluminium
Threaded ring materialPA
Encapsulation compoundPUR V0
Material of end capsDiecast zinc, nickel-plated

Classifications

ETIM 6.0EC001959
eClass 9.027-11-06-40
eClass 10.027-11-06-40
ETIM 7.0EC001959
eClass 9.127-11-06-40

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.60 °C
Operating temperature-20 - 60°C
Operating temperature, min.-20 °C
WIL-765-W-M12G-0.3U-S
WIL-765-W-M12G-0.3U-S
