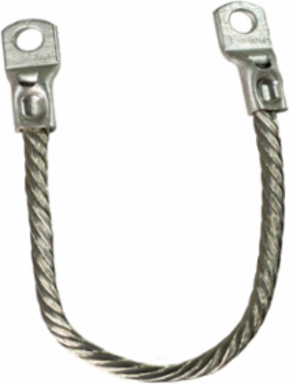

Burndy WILEY-RLJ6C6-516 Wiley Rope-Lay Bonding Jumper, 5/16 Inch Stud, 6 Inch Length, #6 AWG
- MPN: WILEY-RLJ6C6-516
- UPC: 621945555280
- PPN: BUR-50101265
- UNSPSC: 39121465
CAD
$26.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wiley Rope-Lay Bonding Jumper; 5/16" Stud; 6" Length.
Features
- Bond moving and stationary components with extremely flexible conductor stranding
- Standard mounting geometry and hardware requirements allow quick and easy installation
- Tin plated copper construction ensures durability against the elements and provides the environmental stability required for installation longevity
- Offered in a variety of lengths and mounting hardware sizes - customer configurations available upon request
- Listed to UL467 and UL2703
Specifications
Key Specifications
| Bolt Size | 5/16 in |
|---|---|
| Length | 6 in |
| Standard | UL2703 |
| Mounting Hole Spacing | .33 in |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1000 |
| Package - GTIN - Package | 30621945555281 |
| Package Weight | 0.000 lb. |
| Pallet Weight | 0.000 lb. |
| Industry Standard(s) | UL2703 |
|---|---|
| Application | The Wiley Rope Lay Jumper is the optimal solution for bonding applications involving moving components. The WILEY-RLJ type jumpers are flexible in all directions and can be mounted to any flat surface. Made from tin plated copper stranding and crimped into a high-quality BURNDY lug, the rope lay jumper meets requirements of both UL467 and UL2703. At a size equivalent to #6 AWG conductor, engineers and installers can be confident in meeting or exceeding bonding requirements in most applications. The WILEY-RLJ jumpers are available with a variety of mounting hole sizes and in three standard lengths. Adding flexibility to both the installation process and application requirements, custom lengths and mounting configurations are available upon request. |
| Conductor Size | #6 AWG |
| Class Code | B40 |
| Harmonization Code | 7413009000 |
| Sub Class Code | B40BS8F |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 1000 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00621945555280 |
| Case - SCC-14 Next Lower Level Sub Pack | 30621945555281 |
| Package Quantity | 100 EA |
| Pallet - GTIN - Package | 70621945555289 |
| NAICS Code | 423610 |
Certifications
| Certified Listed | UL2703 |
|---|
