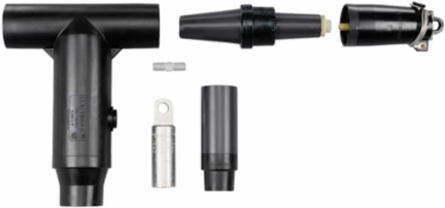

Thomas & Betts 755ETP-J0230-DRG WINDOW-OP KIT, 600A DB, 35KV
- MPN: 755ETP-J0230-DRG
- UPC: 783786476701
- PPN: T-B-755ETP-J0230-DRG
- UNSPSC: 39121421
CAD
$1758.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Specifications
Additional Information
| Application | 600 Amps, 35kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 0.980-1.180 inches. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20051028 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Includes Insulated Cap |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
