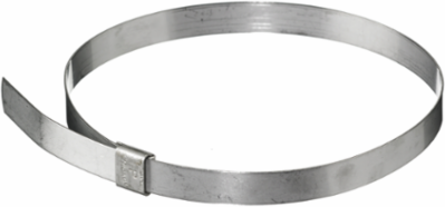

Hubbell Wiring Device-Kellems 20320054 Punch-Lok Band 5/8 Inch x 6 Inch for Cable Size 3-1/2 to 5 Inch
- MPN: 20320054
- UPC: 783585326481
- PPN: HBL-20320054
- UNSPSC: 39121722
CAD
$20.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wire Management, Pulling Grip Punch-Lok Band, 5/8" X 6"
Features
- Bands are applied over the tail of a grip to prevent mesh frombeing tripped or pulled loose.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 0.200 in
- Performance
- Mechanical - Band Inside Diameter - 6" (15.24);Band Width - 5/8" (1.59);Grip Banding Range - 3 1/2"-5" (8.89-12.70)
- Cable Size
- 3 1/2"-5" (8.89-12.70)
- Standard
- CSA Certified
- Weight
- 0.2 lb.
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Bandwidth
- 5/8 in
- Cable Specification
- UL Listed Circuit Wire
- Diameter - Metric
- 15.24 cm
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Tools and Bands Series
- BOX SIZE
- 5.900x6.800x18.300 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585326481
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Cable Diameter Range3 1/2 in-5 in
Industry Standard(s)CSA Certified
ApplicationGeneral Cable Pulling
Special FeaturesStandard Product
TypePunch-Lok Band
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Bandwidth Metric1.59 cm
Diameter6.00 in
StylePunch-Lok Band
Description - InvoicePUNCH-LOK BAND, 5/8" X 6"
Harmonization Code7326908688
MSDS FlagNo
Material - Mounting HardwareNon-Mounted
Model0-24
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
