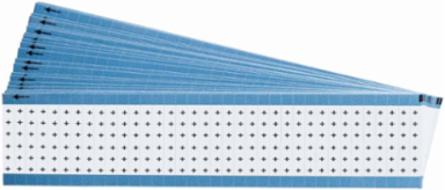

Brady TWM-PLS-PK Wire Markers - Low-Profile Vinyl-Coated Polyester, Legend Plus Sign
- MPN: TWM-PLS-PK
- UPC: 662820907480
- PPN: BRD-TWM-PLS-PK
- UNSPSC: 39131507
CAD
$107.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Made of B-702 low profile glossy vinyl-coated polyester, these wire markers are resistant to oil and mild solvents.
Features
- The high adhesion properties make them perfect for machine tool labeling
- Glossy white vinyl topcoat with a high tack rubber-based adhesive features excellent flexibility for wrapping on thin gauge wire
- High adhesion and low profile when wrapped on wires
- Withstands mild chemicals, oil and water
Documentation & Downloads
Specifications
Key Specifications
| Applications | Component and Equipment Labeling; Wire and Cable Labeling |
|---|---|
| Cards or Sheets per Pack | 25 |
| Compatible Surface Types | Low Surface Energy |
| Finish | Gloss |
| Primary Noun, Basic Function | Wire Marker |
| Quantity per Card or Sheet | 36 |
| Adhesive Type | High-tack Rubber Based |
| Label Properties | Permanent Adhesive Labels |
| Material Properties | Low Profile |
| SAP B-Number | B-702 |
| Dimensions 2 | 1.5 in H |
| Maximum Service Temperature °C | 100 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -40 °C |
| Thickness (in/ft/yd) | 0.0022 in |
| Brand Name | Brady® |
|---|---|
| Color | Black on White |
| Enables Industry Compliance | ASTM D 1000; ASTM D 2979 |
| Label/Media Format | Die-Cut on Cards |
| Printer and Label Applications | Wire & Cable |
| Text Legend | + |
| Brady Material Number | B-702 |
| Material | Vinyl |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 1.5 in H |
| Height (in/ft/yd) | 1.5 in |
| Maximum Service Temperature °F | 212 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -40 °F |
| Thickness (mm/cm/m) | 0.056 mm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
