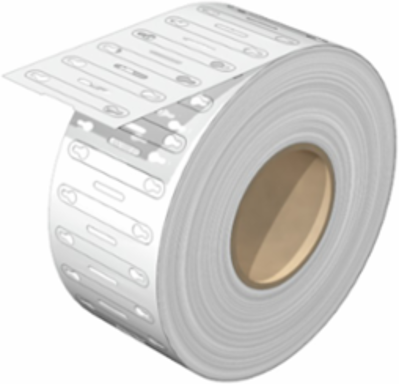

Weidmuller 2006030000 WM 1/21 2.0-3.5 MM WS
- MPN: 2006030000
- PPN: WDM-2006030000
CAD
$0.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
WM, Conductor and cable markers, 2 - 3.5 mm, 32 x 4.8 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Material
- Polyester
- Size of labelling field
- 22 x 4.8 mm
- Version
- halogen-free
- compatible printer
- 2599430000 2599440000
HalogenNo
Operating temperature range-40...150 °C
UL 94 flammability ratingHB
Width4.8 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 4.8 mm
- Height
- 32 mm
- Depth
- 0.5 mm
- Net weight
- 0.131 g
Width (inches)0.189 inch
Height (inches)1.26 inch
Depth (inches)0.02 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 2 - 3.5 mm
- Conductor O.D., min.
- 2 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.3.5 mm
Conductor cross-section, max.2.5 mm²
HalogenNo
