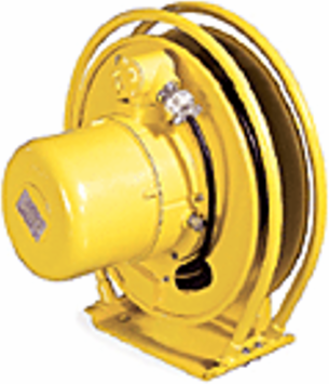

Woodhead 92642 POW-R-MATIC Heavy Duty Cable Reel, 33.53m (110.0') Cord, 4 Conductors, Steel Housing
- MPN: 92642
- UPC: 078678879273
- PPN: WOD-92642
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
POW-R-MATIC Heavy Duty Cable Reel, 33.53m (110.0') Cord, 4 Conductors, Steel Housing
Documentation & Downloads
Specifications
Material Info
| Engineering Number | 92642 |
|---|
Agency Certification
| CSA | LR29921 |
|---|
Electrical
| GFCI | No |
|---|---|
| Voltage - Maximum | 600V |
| Bulb Included | N/A |
| Current - Maximum per Contact | 11.0A |
| Lamp Wattage - Maximum | N/A |
|---|---|
| Lamp Type | N/A |
| Cord Type | 14/4 SOW |
| On/Off Switch | N/A |
Physical
| Number of Conductors | 4 |
|---|---|
| Cord Length | 33.53m (110.0') |
| Drum Lock | Ratchet |
| Primary Cord/Cable Entry | 1" NPT |
| Cable Movement | Ratchet Lock |
| Material - Coating | Powder Coating |
| Mounting Style | Rigid |
|---|---|
| Retraction Weight | 3.2kg (7.0 lb) |
| Wire Size AWG | 14 |
| Guide Arm | Option Available |
| Material - Housing | Steel |
| Packaging Type | Carton |
General
| Width | 416.10mm (16.38") |
|---|---|
| Duty | Heavy |
| Comments | Applications: Vertical Lift, Drag, Recovery and Horizontal Stretch with 10% Sag. |
| Enclosure Rating | NEMA 3R |
| Series | 130085 |
| NEMA Configuration | N/A |
| Product Family | Electric Reels |
| Product Literature Order No | 987650-8062 |
| Depth | 0.58m (22.750") |
|---|---|
| Height | 0.59m (23.38") |
| UPC | 78678879273 |
| Type | Cable Reel |
| Product Name | POW-R-MATIC® |
| Overview | Electric Reels |
| Cable Length | N/A |
