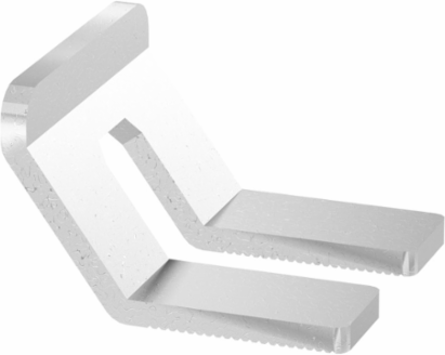

Weidmuller 1079500000 WQB PEN 35N
- MPN: 1079500000
- PPN: WDM-1079500000
CAD
$30.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 2
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 24.6 mm |
|---|---|
| Height | 25.9 mm |
| Depth | 2 mm |
| Net weight | 11.9 g |
| Width (inches) | 0.969 inch |
|---|---|
| Height (inches) | 1.02 inch |
| Depth (inches) | 0.079 inch |
Dimensions
| Pitch in mm (P) | 16 mm |
|---|
Additional Technical Data
| Type of fixing | Plugged |
|---|
Material Data
| Material | tinned copper |
|---|
| Colour | Silver grey |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
System Specifications
| Version | For the terminals |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
