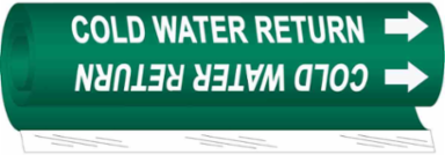

Brady 80548 Wrap Around Pipe Marker: COLD WATER RETURN8" H x 5" W, Fits Pipes 0.5" Dia. Thru 1.375" Dia.
- MPN: 80548
- UPC: 754473805487
- PPN: BRD-80548
- UNSPSC: 55121737
CAD
$11.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-689 Pipemarkers from Brady® are coiled printed plastic sheets with sealed color graphics
Features
- Designed for use on rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Style O wrap-around pipe markers fit pipes with outside diameter of 1/2 in. to 1-3/8 in.
- Resistant to UV light exposure, high humidity, high temperatures, abrasion, chemical reagents and physical agitation
- Excellent chemical resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- White on Green
- Enables Industry Compliance
- ANSI A13.1-2007
- Pipe Marker Mounting Style
- Wrap Around
- Primary Noun, Basic Function
- Pipe Marker
- Text Legend
- COLD WATER RETURN
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Polyester Overlaminate
- Material Properties
- Self-laminating
- Dimensions
- 8 in H x 5 in W
- Dimensions 2
- 8 in H x 5 in W
- Height (mm/cm/m)
- 203.2 mm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 34.93 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 12.7 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 8 in H x 5 in W
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 5 in
Brand NameBrady®
Compatible Surface TypesCurved; Rough
LanguageEnglish
Pre-Printed Areas on LabelIIAR Components
Printer and Label ApplicationsPipe Marker
Brady Material NumberB-689
Label PropertiesHarsh Environment Labels
MaterialCoiled Plastic
SAP B-NumberB-689
Dimensions (Metric)203.2 mm H
Height (in/ft/yd)8 in
Maximum Outside Pipe Diameter (in/ft/yd)1.375 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)0.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 0.5" Dia. Thru 1.375in Dia.
Sign Size-General8 in x 5 in
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)127 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
