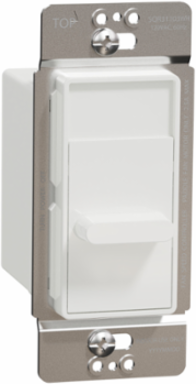

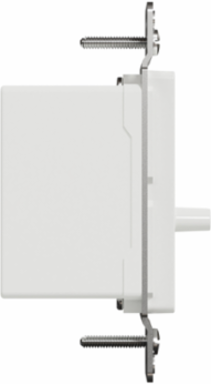

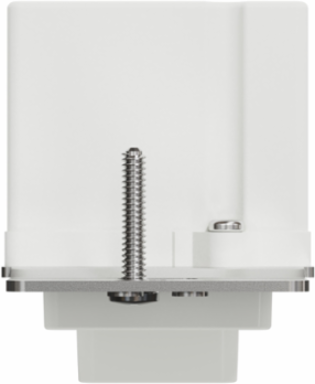

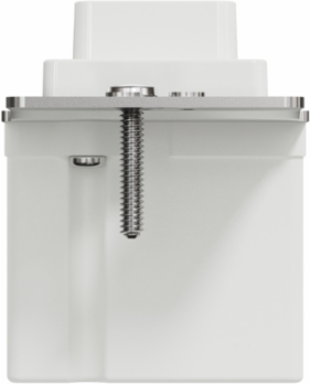

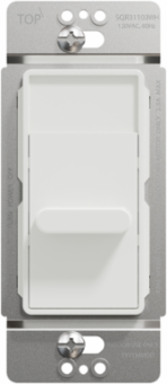

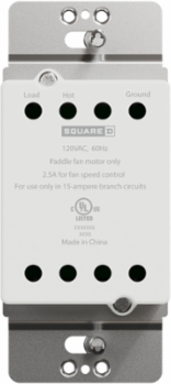

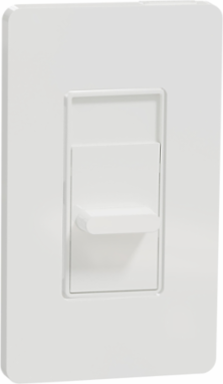

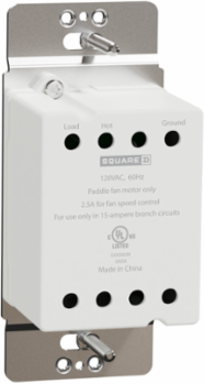

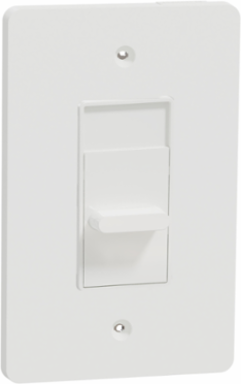

Schneider Electric SQR31103WH X Series 2.5A 1-Way Slide Fan Controller, 48mm Width, White Finish
- MPN: SQR31103WH
- UPC: 785901535072
- PPN: SCH-SQR31103WH
CAD
$29.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series 2.5A 3-Speed Slide Fan Controller is compatible with X Series single and multi-gang wall plates. Slide control provides clear user feedback for low, medium, or high fan speed. Enjoy a consistent look in your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It is made of metal and plastic making it resistant and durable. This fan controller has a white frame. This fan controller benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 48 mm, a height of 103 mm and a depth of 64 mm. By satisfying the UL 1917 standard, this fan controller is cUlus certified. Its Ie rated operational current is 2.5A. The dimensions are (W) 48mm x (H) 103mm x (D) 64mm. Its made of super-durable thermoplastic material and its easy to clean. This device is compliant with UL 1917 standard and cULus certification.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth64 mm
Physical Attributes
- Color
- White, White
Complementary Attributes
- Maximum Horse Power Rating
- 0.25 hp
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Local Data Status
- Publishable
- Pre Comm Date
- 2020-03-11
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Aesthetic Name
- X Series
- Energy Efficiency Optimized
- False
- Load Type
- fan motor
- Material
- plastic: strapmetal: fixing frame
- Network Frequency
- 60 Hz
- Number Of Gangs
- 1 gang
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Sustainable Packaging
- No
- Targeted Channel
- distributor
- Width Nominal
- 48 mm
- [Ie] Rated Operational Current Ac
- 2.5 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8533390040
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Local Publishable Date2026-06-23
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Actuatorslide
Device Applicationcontrol
Load Current2.5 A
Market Segmentresidential
Mounting Modeby screws
Network TypeAC
Number Of Poles1
Product Or Component Typefan controller
RangeSquare D X Series
Surface FinishMatte
Switch Function1-way
Height Nominal103 mm
Certificate AgencycULus
[Ue] Rated Operational Voltage120 V
Package Weight(Lbs)147.5 g
Warranty (In Months)12
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fan controller
ETIM
- ETIM 8
- EC000256
ETIM 9EC000256
Contractual Warranty Attributes
- Warranty Period
- 1 year
Warranty1 year
Overview Attributes
- Device Presentation
- mechanism with fixing frame
