Killark X-10 Blank Back Box Cover for SWB Series - 5.5 Inch x 5.25 Inch x 3.25 Inch, Aluminum
- MPN: X-10
- UPC: 783936890005
- PPN: HBL-X-10
- UNSPSC: 39122216
CAD
$142.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

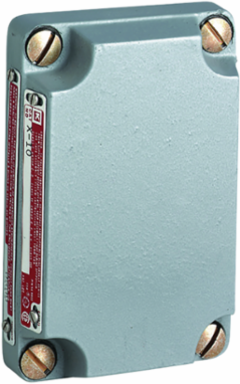

X Series - Blank Cover For SWB Back Box
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS Series Control Station Blank Cover provides a means to cap off an entry in any size SWB back box used with XCS Control Stations in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
Specifications
Key Specifications
- Size
- 5.5 in x 5.25 in x 3.25 in
- ARRA Compliant
- Contact Manufacturer
- Back Box Type
- SWB
- Depth
- 1-1/32 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 5.5 in
- Application
- For use with SWB Series back boxes.
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- X Series
- BOX SIZE
- 3.250x5.500x5.250 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936890005
- Master Pack Description
- Each
Special FeaturesKillark XCS Series Control Station Blank Cover provides a means to cap off an entry in any size SWB back box used with XCS Control Stations in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
Country of OriginMexico
ColorGray
Dimensions5.5 in x 5.25 in x 3.25 in
Height3.25 in
Width5.25 in
TypeBlank Back Box Cover
Description - InvoiceX-XCS BLANK COVER
Harmonization Code7616999999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.07
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.070 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
