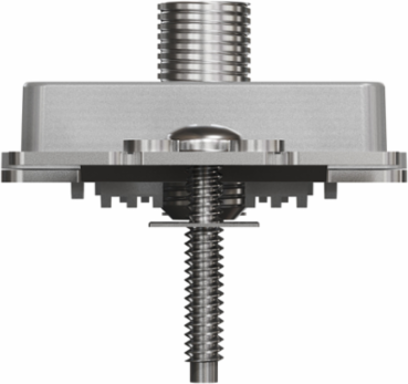

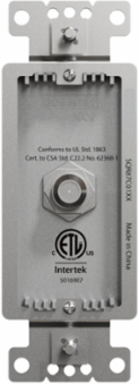

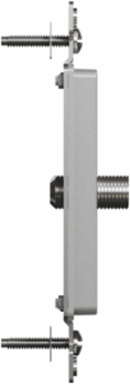

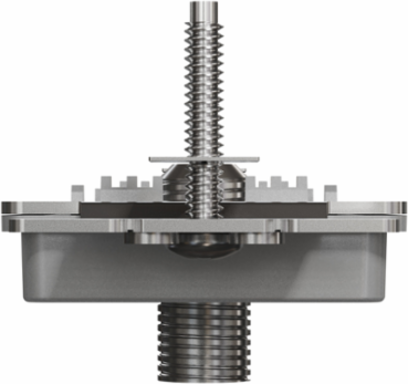

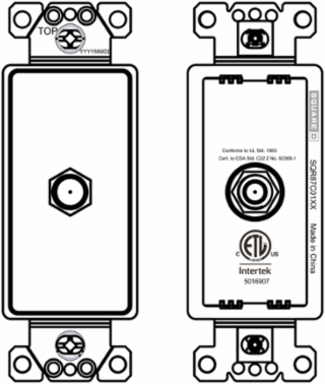

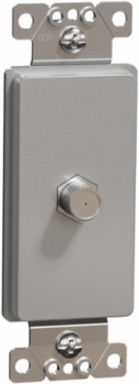

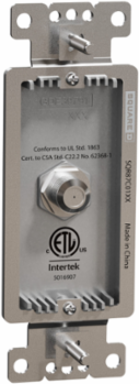

Square D SQR87C01GY X Series CATV F Coupler Decorator Strap, 37 mm Width, 103 mm Height, Grey
- MPN: SQR87C01GY
- UPC: 785901550129
- PPN: SCH-SQR87C01GY
CAD
$5.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series CATV F Coupler Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your cable TV and benefits from the F-type connector. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It fits in any decorator opening and is easy to clean. This TV decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. This device supports cable television, satellite television and cable modems with the F-type connector. This TV decorator strap benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 37 mm, a height of 103 mm and a depth of 35 mm. By satisfying the UL 1863 standard, this TV decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This device is grey with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth35 mm
Physical Attributes
- Color
- Gray, Gray
Important Information Attributes
- Persona Type Ids
- EUA, LC, SC
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2020-10-30
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Residential
- Aesthetic Name
- X Series
- Contacts Material
- phosphor bronze with nickel plating
- Electrical Circuit Type
- CATV
- Market Segment
- residential
- Mounting Mode
- by screws
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Signal
- DATA
- Width Nominal
- 37 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536694010
Persona Type NamesConsumer, Contractor, Electrician
Local Publishable Date2026-06-23
Pre Comm Date2020-12-18
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Connector TypeF connectors
Device Applicationcommunication
Energy Efficiency OptimizedFalse
Materialplastic: strapmetal: fixing frame
Number Of Gangs1 gang
Product Or Component TypeTV socket
RangeSquare D X Series
Surface FinishMatte
Targeted Channeldistributor
Height Nominal103 mm
Certificate AgencyETL verified
Package Weight(Lbs)50 g
Warranty (In Months)24
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- TV socket
ETIM
- ETIM 8
- EC000439
ETIM 9EC000439
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Overview Attributes
- Device Presentation
- mechanism with fixing frame
