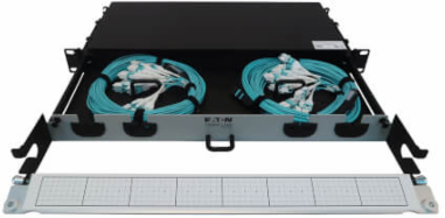

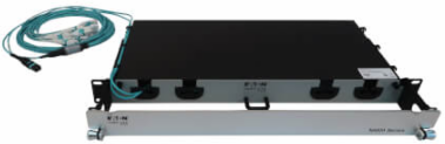

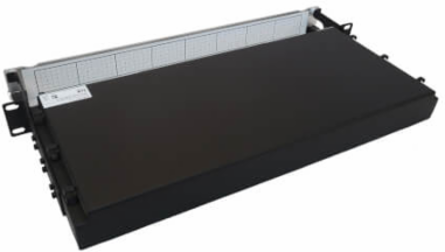

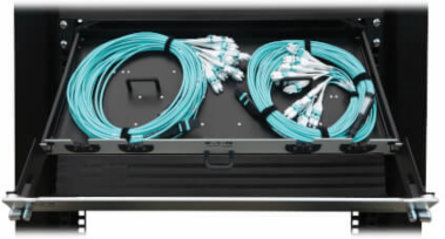

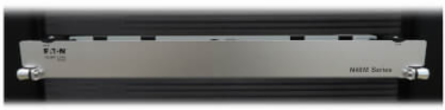

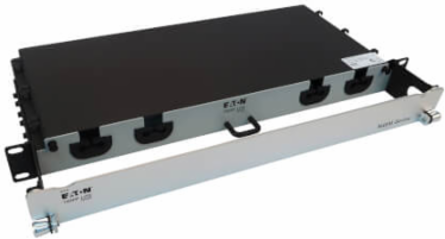

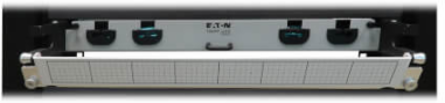

Tripp Lite N48M2M24L1210 Preloaded Fiber Panel, 1U - 2x (24F MTP/MPO-PC to 12x LC Duplex F/M) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

MPN: N48M2M24L1210
UPC: 037332262202
PPN: TRP-N48M-2M24L12-10

$3024.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Preloaded Fiber Panel, 1U - 2x (24F MTP/MPO-PC to 12x LC Duplex F/M) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

Features

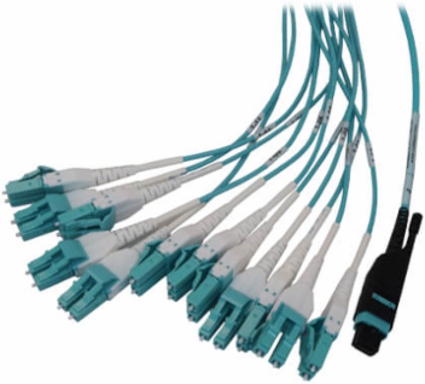

(2) MTP/MPO-PC to LC Duplex trunk cables, 10 m (32.8 ft.)
Installation guide included

Documentation & Downloads

Specifications

Material

Product Type	Preloaded
Panel Style	Preloaded Fiber Panel
Cable Jacket Color	Aqua
Cable Jacket Rating	OFNP

Technology	Multimode
Endface Polish	PC
Connector Color	Aqua; Black; White
All-in-One Kit	Yes

Performance

Network Compatibility	100 Gbps; 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)

Wavelength	1300nm; 850nm
Attenuation @ 1300NM	1.0 dB/km
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Humidity Range	5% to 85% RH, Non-Condensing

Dimensions

Panel Dimensions	17.32 x 1.73 x 10.20 in
Fiber Cable Length	10 m (32.8 ft)
Side B Connector	(12) LC Duplex (Male)
Number of Fibers	24
Core Diameter	50
Cable Outer Diameter	2.9 mm
Offset Ports	No
