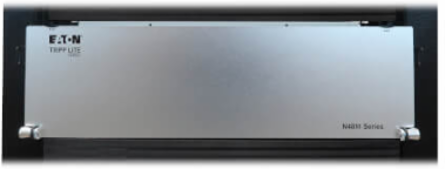

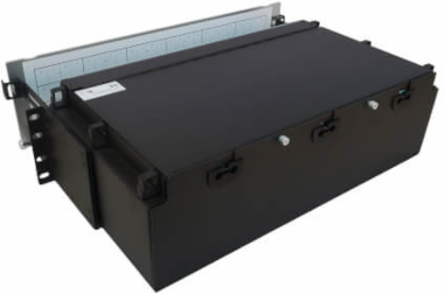

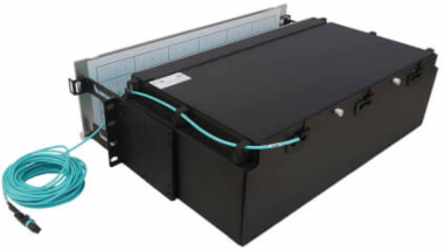

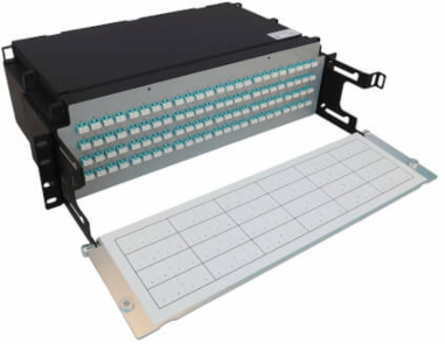

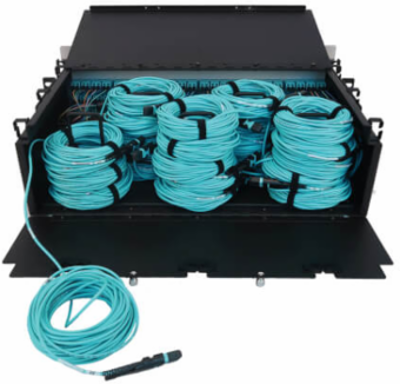

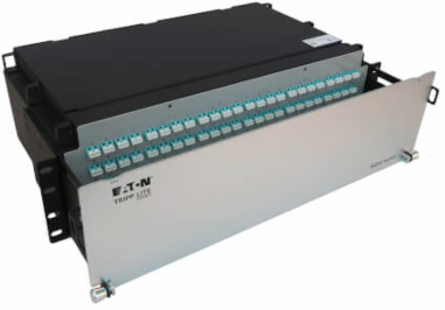

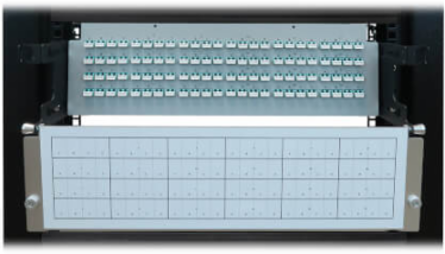

Tripp Lite N48M24M8L410 Preloaded Fiber Patch Panel, 3U - 24x (12F MTP/MPO-PC to 4x LC Duplex F/F) 8F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

MPN: N48M24M8L410
UPC: 037332262257
PPN: TRP-N48M-24M8L4-10

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Preloaded Fiber Patch Panel, 3U - 24x (12F MTP/MPO-PC to 4x LC Duplex F/F) 8F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

Features

(24) MTP/MPO-PC to LC Duplex trunk cables, 10 m (32.8 ft.)
Installation guide included

Documentation & Downloads

Specifications

Performance

Network Compatibility	40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)

Wavelength	1300nm; 850nm
Attenuation @ 1300NM	1.0 dB/km
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Humidity Range	5% to 85% RH, Non-Condensing

Dimensions

Panel Dimensions	17.42 x 5.24 x 12.99 in
Panel Cable Number	24
Side A Connector	(24) 12F MPO (Female)
Optical Port	LC; MPO/MTP
Clad Diameter	125
Primary Coating Diameter	245
Primary Form Factor	Rackmount

Unit Dimensions	5.230 x 17.400 x 12.990 in
Fiber Cable Length	10 m (32.8 ft)
Side B Connector	(96) LC Duplex (Female)
Number of Fibers	8
Core Diameter	50
Cable Outer Diameter	2.9 mm
Offset Ports	No
