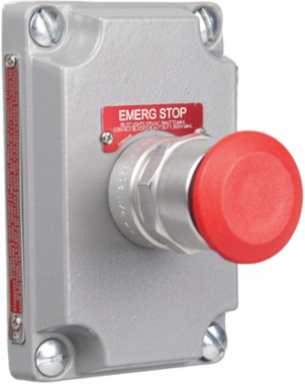

Killark XCS-0MMR3 Aluminum Push/Pull Button Cover with Red Mushroom, 5.56 Inch x 4 Inch x 5.63 Inch, 1NO/1NC Contact
Killark XCS-0MMR3 Aluminum Push/Pull Button Cover with Red Mushroom, 5.56 Inch x 4 Inch x 5.63 Inch, 1NO/1NC Contact
- MPN: XCS-0MMR3
- UPC: 783936890401
- PPN: HBL-XCS-0MMR3
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1206.03/ EA
Description
XCS Series - Aluminum Maintained Contact Push/Pull Button Cover With Device - Red Mushroom Button Supplied With Three Nameplates("Start/Stop", Blank, "Emergency Stop") - 1NO/1NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Back Box Type
- SWB
- Country of Origin
- US
- Dimensions
- 5.56 in x 4 in x 5.63 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 5.56 in
- Action
- SP
- Amperage Rating
- 10 A
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- BOX SIZE
- 26.130x7.000x6.380 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936890401
- Master Pack Description
- Each
Size5.56 in x 4 in x 5.63 in
ARRA CompliantContact Manufacturer
ColorRed
Depth3-1/8
Each - Width4.000 in
Height5.63 in
Width4 in
ActuatorMaintained Pushbutton
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Frequency Rating50/60 Hz
TypeAluminum Cover With Push-Pull Button
Description - InvoiceRED PUSH=PULL MAINT NO/NC
Harmonization Code8536509901
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.4
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
