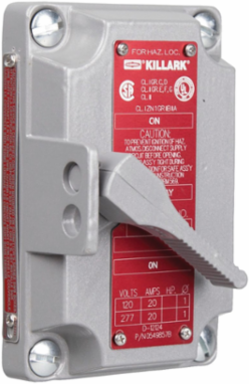

Killark XNS-2D Aluminum 2-Pole Tumbler Switch Cover 30A 5.5 Inch x 5 Inch x 3 Inch
Killark XNS-2D Aluminum 2-Pole Tumbler Switch Cover 30A 5.5 Inch x 5 Inch x 3 Inch
- MPN: XNS-2D
- UPC: 783936913384
- PPN: HBL-XNS-2D
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$297.37/ EA
Description
XS Series - Aluminum 2-Pole Tumbler Switch Cover Without Device - 30A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- China
- Depth
- 4-1/4
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 5.5 in
- Actuator
- Lever
- Application
- Used where making, breaking, or changing connections in an electric circuit is required.
- Number of Poles
- 2
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 5 in
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360
- Series
- XNS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936913384
Back Box TypeSWB
Dimensions5.5 in x 5 in x 3 in
Height3 in
ActionDPST
Amperage Rating30 A
ColorGray
Size5.5 in x 5 in x 3 in
TypeAluminum Tumbler Switch Cover
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - Invoice1/2"3/4" 2P 30A COVER/WOUT DEV
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging0.95
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
