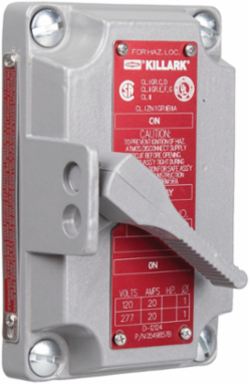

Killark XS-7C Aluminum DPDT Tumbler Switch Cover 20A, 5.630 Inch Width, Hazardous Location Certified
Killark XS-7C Aluminum DPDT Tumbler Switch Cover 20A, 5.630 Inch Width, Hazardous Location Certified
- MPN: XS-7C
- UPC: 783936925288
- PPN: HBL-XS-7C
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$553.18/ EA
Description
XS Series - Aluminum DPDT (Center Off) Tumbler Switch Cover With Device- 20A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- China
- Depth
- 4-1/4
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Actuator
- Lever
- Application
- Used where making, breaking, or changing connections in an electric circuit is required.
- Number of Poles
- 2
- Type
- Aluminum Tumbler Switch Cover
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360
- Series
- XS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936925288
Back Box TypeSWB
Width5.630 in
ActionDPDT (CTR OFF)
Amperage Rating20 A
ColorGray
Special FeaturesKillark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceCOVER W/DEVICE 1 1/2 - 3/4" HUB
Harmonization Code8536509040
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging2
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
