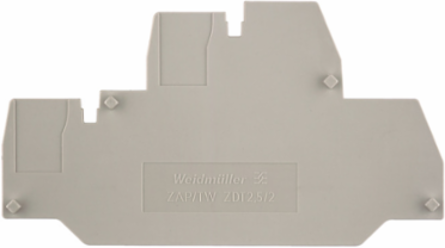

Weidmuller 1816110000 ZAP/TW ZDT2.5/2
- MPN: 1816110000
- PPN: WDM-1816110000
CAD
$0.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, End plate, Seperation plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2.5 mm
- Height
- 80.5 mm
- Depth
- 44.66 mm
- Net weight
- 4.08 g
Width (inches)0.098 inch
Height (inches)3.169 inch
Depth (inches)1.758 inch
Additional Technical Data
- Snap-on
- Yes
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27
System Specifications
- Version
- End and intermediate plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
