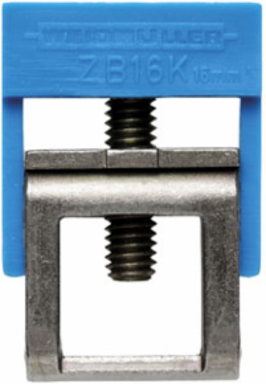

Weidmuller 0565480000 ZB 4/6K BL
- MPN: 0565480000
- PPN: WDM-0565480000
CAD
$1.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, PA, blue, Feed-through (bushing)
Documentation & Downloads
Specifications
Approvals
| Approvals | CSA, DEMKOATEX, IECEXULD |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 25 mm |
| Depth | 14.7 mm |
| Net weight | 3.68 g |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 0.984 inch |
| Depth (inches) | 0.579 inch |
Csa Rating Data
| Certificate No. (CSA) | 12400-237 |
|---|---|
| Wire cross section min. (CSA) | 26 AWG |
| Wire cross section max. (CSA) | 10 AWG |
|---|
Additional Technical Data
| Installation advice | Feed-through (bushing) |
|---|
| Type of mounting | when screwed in |
|---|
Material Data
| Material | Steel |
|---|---|
| Colour | silver |
| Insulating material | PA |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | for busbar 6 x 6 mm |
|---|
Temperatures
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
|---|
Rating Data Iecex/Atex
| Certificate No. (ATEX) | DEMKO03ATEX136028U |
|---|---|
| Wire cross section max. (ATEX) | 4 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| Certificate No. (IECEX) | IECEXULD13.0005U |
|---|---|
| Wire cross section max. (IECEX) | 4 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
| Safety notice | Installation instructions:The potential equalisation (PE) rail modules are suitable for use in housings in atmospheres with flammable gases and dust. For use in areas with flammable gases, these housings must meet the requirements of EN 60079-0 and EN 60079-7. For use in areas with flammable dust, these housings must meet the requirements of EN 60079-0 and EN 60079-31.When combined with other terminal block ranges and sizes, and when other accessories are used, you must comply with the clearance and creepage distances given.Regarding accessory use, the manufacturer's instructions must be followed. List of restrictions: The PE rail modules are considered one component, with Ex marking when used with the busbar holders of type SH and WEW. When used independently, the above named components are not covered by this certificate. |
Conductors For Clamping (Rated Connection)
| Clamping screw | M 3 |
|---|---|
| Tightening torque, min. | 1.2 Nm |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Stripping length | 16 mm |
|---|---|
| Type of connection | Clamping yoke |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
