Arlington Industries

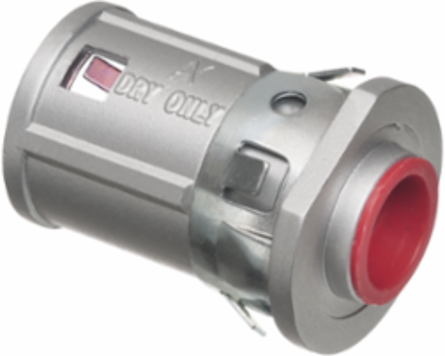

Arlington Industries 40RAST Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit and comes with Insulated throat. Has rectangular end stop.

Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit and comes with Insulated throat. Has rectangular end stop.
  • MPN: 40RAST
  • UPC: 018997135872
  • PPN: ARL-40RAST

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2.23/ EA

Description

Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit and comes with Insulated throat. Has rectangular end stop.

Specifications

Basic Information

UPC
018997135872
Standard Packaging
25pcs
Listing
cULus, CSA
Unit Packaging25pcs
Country of OriginUnited States

Technical Information

Cable Range
14/3, 12/2 and 12/3 w/ and w/o ground, 14/4, 12/4, 10/2, 10/3
Trade Size1/2"

Physical Information

Weight
0.062 lbs/each
Width
1.000"
Material(s)
Zinc
Height1.390"
ColorSilver
