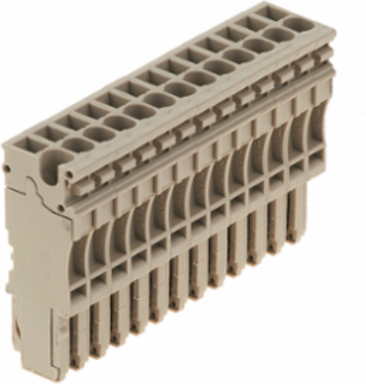

Weidmuller 1815590000 ZP 2.5/1AN/13

MPN: 1815590000
PPN: WDM-1815590000

$15.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Z-series, Plug-in connector, dark beige, Direct mounting

Documentation & Downloads

Specifications

Approvals

Approvals	CCSAUS, CE, cURus, DNV GL, EAC, KEMAKEUR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	66.3 mm
Height	16.5 mm
Depth	41 mm
Net weight	43.4 g

Width (inches)	2.61 inch
Height (inches)	0.65 inch
Depth (inches)	1.614 inch

Csa Rating Data

Certificate number (cCSAus)	154685-1460993
Current size D (cCSAus)	5 A
Voltage size D (cCSAus)	600 V
Wire cross section min. (cCSAusX)	26 AWG

Current size C (cCSAus)	20 A
Voltage size C (cCSAus)	300 V
Wire cross section max. (cCSAusX)	12 AWG

Additional Technical Data

Installation advice	Direct mounting
Type of mounting	Plugged

Open sides	closed

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Classifications

ETIM 6.0	EC002848
eClass 9.0	27-14-11-92
eClass 10.0	27-14-11-92

ETIM 7.0	EC002848
eClass 9.1	27-14-11-92
UNSPSC	30-21-18-01

System Specifications

Version	Plug-in connector, Tension-clamp connection
Number of levels	1
Levels cross-connected internally	No

End cover plate required	No
Number of clamping points per level	1
PE connection	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	2.5 mm²
Rated voltage to adjoining terminal	500 V
Rated current	24 A
Standards	IEC 60947-7-1, IEC 61984
Power loss in accordance with IEC 60947-7-x	0.77 W
Rated impulse withstand voltage to adjacent terminal	6 kV

Rated voltage	500 V
Max. voltage of clamp support & pluggable system	690 V
Current at maximum wires	24 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Pollution severity	3

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	top
Number of connections	13
Type of connection	Plug-in connection
Wire connection cross section AWG, min.	AWG 12
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Ul Rating Data

Certificate No. (cURus)	E60693
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size D (cURus)	5 A
Voltage size D (cURus)	600 V
