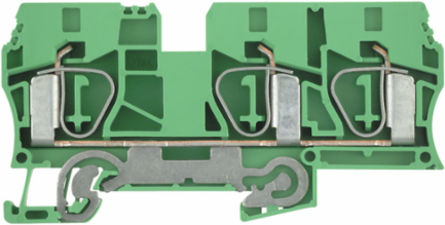

Weidmuller 1767670000 ZPE 10/3AN
- MPN: 1767670000
- PPN: WDM-1767670000
CAD
$13.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PE terminal, Tension-clamp connection, 10 mm², 1200 A (10 mm²), Green/yellow
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, DEMKOATEX, EAC, IECEXULD, KEMAATEX, KEMAKEUR, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 10.1 mm
- Height
- 99 mm
- Depth
- 49.5 mm
- Depth including DIN rail
- 50.5 mm
Width (inches)0.398 inch
Height (inches)3.898 inch
Depth (inches)1.949 inch
Net weight41.663 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152892
- Wire cross section min. (CSA)
- 16 AWG
Wire cross section max. (CSA)6 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceBusbar
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
ColourGreen/yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000901
- eClass 9.0
- 27-14-11-41
- eClass 10.0
- 27-14-11-41
ETIM 7.0EC000901
eClass 9.127-14-11-41
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, With PE connection, One end without connector
- Number of levels
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level3
PE connectionYes
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.120 °C
Pe Rating Data
- Rated short-time current
- 1200 A (10 mm²)
PEN functionNo
Rating Data
- Rated cross-section
- 10 mm²
- Standards
- IEC 60947-7-2
- Power loss in accordance with IEC 60947-7-x
- 1.82 W
- Pollution severity
- 3
Rated voltage to adjoining terminal800 V
Volume resistance according to IEC 60947-7-x0.56 mΩ
Rated impulse withstand voltage to adjacent terminal8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA00ATEX2107U
- Wire cross section max. (ATEX)
- 10 mm²
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD05.0009U
Wire cross section max. (IECEX)10 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, min.
- 1.31 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Gauge to IEC 60947-1
- A6
- Stripping length
- 18 mm
- Wire connection cross section AWG, max.
- AWG 6
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
Clamping range, max.16 mm²
Connection cross-section, stranded, max.16 mm²
Connection directiontop
Number of connections3
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.10 mm²
Wire connection cross-section, finely stranded, min.1.5 mm²
Wire connection cross-section, solid core, min.1.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 16 AWG
- Conductor size Field wiring min. (UR)
- 16 AWG
Conductor size Factory wiring max. (UR)6 AWG
Conductor size Field wiring max. (UR)6 AWG
