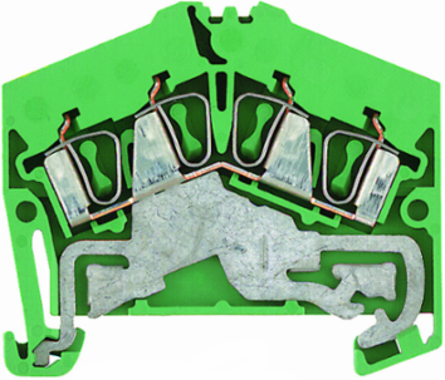

Weidmuller 1706100000 ZPE 2.5-2/4AN
- MPN: 1706100000
- PPN: WDM-1706100000
CAD
$9.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, RINA, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 50.5 mm
- Depth
- 43.5 mm
- Depth including DIN rail
- 44 mm
Width (inches)0.201 inch
Height (inches)1.988 inch
Depth (inches)1.713 inch
Net weight11.98 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1194786
- Wire cross section min. (CSA)
- 26 AWG
Wire cross section max. (CSA)14 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
ColourGreen/yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000901
- eClass 9.0
- 27-14-11-41
- eClass 10.0
- 27-14-11-41
ETIM 7.0EC000901
eClass 9.127-14-11-41
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, With PE connection, One end without connector
- Number of levels
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level4
PE connectionYes
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.120 °C
Pe Rating Data
- Rated short-time current
- 300 A (2.5 mm²)
PEN functionNo
Rating Data
- Rated cross-section
- 2.5 mm²
- Standards
- IEC 60947-7-2
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage to adjoining terminal800 V
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage to adjacent terminal8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO16ATEX1808U
- Wire cross section max. (ATEX)
- 4 mm²
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD16.0036U
Wire cross section max. (IECEX)4 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Gauge to IEC 60947-1
- A2
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection directionInclined / angled
Number of connections4
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
