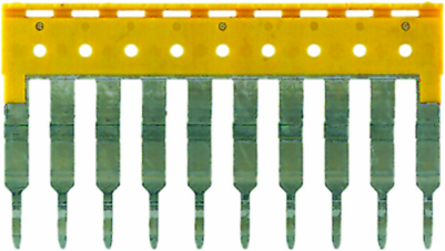

Weidmuller 1608940000 ZQV 2.5/10
Weidmuller 1608940000 ZQV 2.5/10
- MPN: 1608940000
- PPN: WDM-1608940000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$7.53/ EA
Description
Accessories, Cross-connector, 24 A
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 2.8 mm
- Height
- 49.3 mm
- Depth
- 27.6 mm
- Net weight
- 6.724 g
Width (inches)0.11 inch
Height (inches)1.941 inch
Depth (inches)1.087 inch
Dimensions
- Pitch in mm (P)
- 5.1 mm
Additional Technical Data
- Explosion-tested version
- Yes
- Type of fixing
- Plugged
Installation adviceDirect mounting
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colouryellow
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- For the terminals
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated current
- 24 A
Downloads
